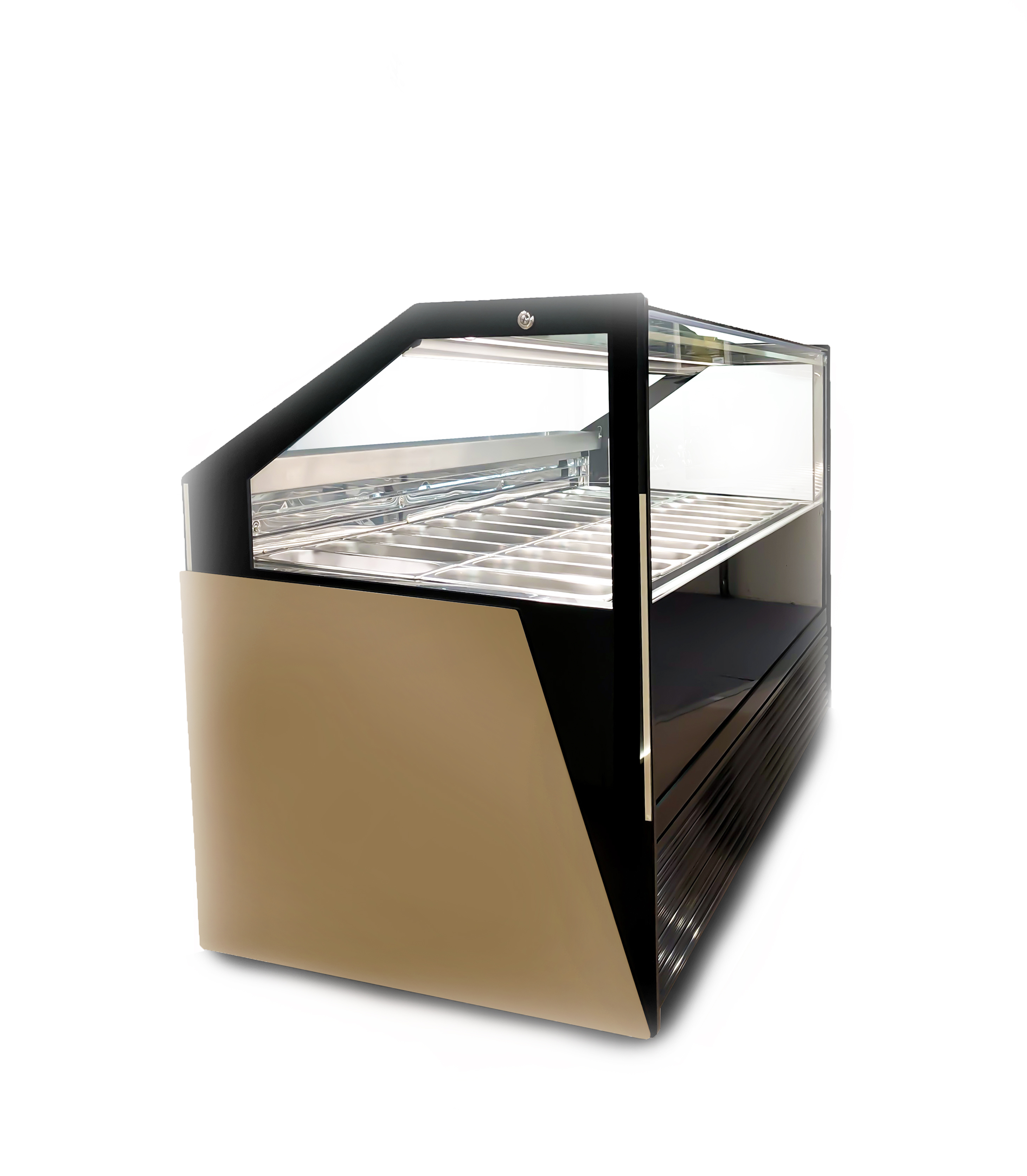

W90
With its 90cm depth, it is the best solution for narrow spaces. Contrary to other narrow showcases, it offers two rows of standart pans and sustains same cooling performance.
DESIGNED FOR NARROW SPACES
90CM
Its internal volume is in the dimensions of a standard showcase, and it can be passed through doors with a width of 90 cm thanks to its externally movable back counter. Thanks to its 90cm depth, it occupies less space on the counter side and offers a wider rear working area, unlike standard double row tubs in narrow spaces.
DESIGN AND FUNCTION

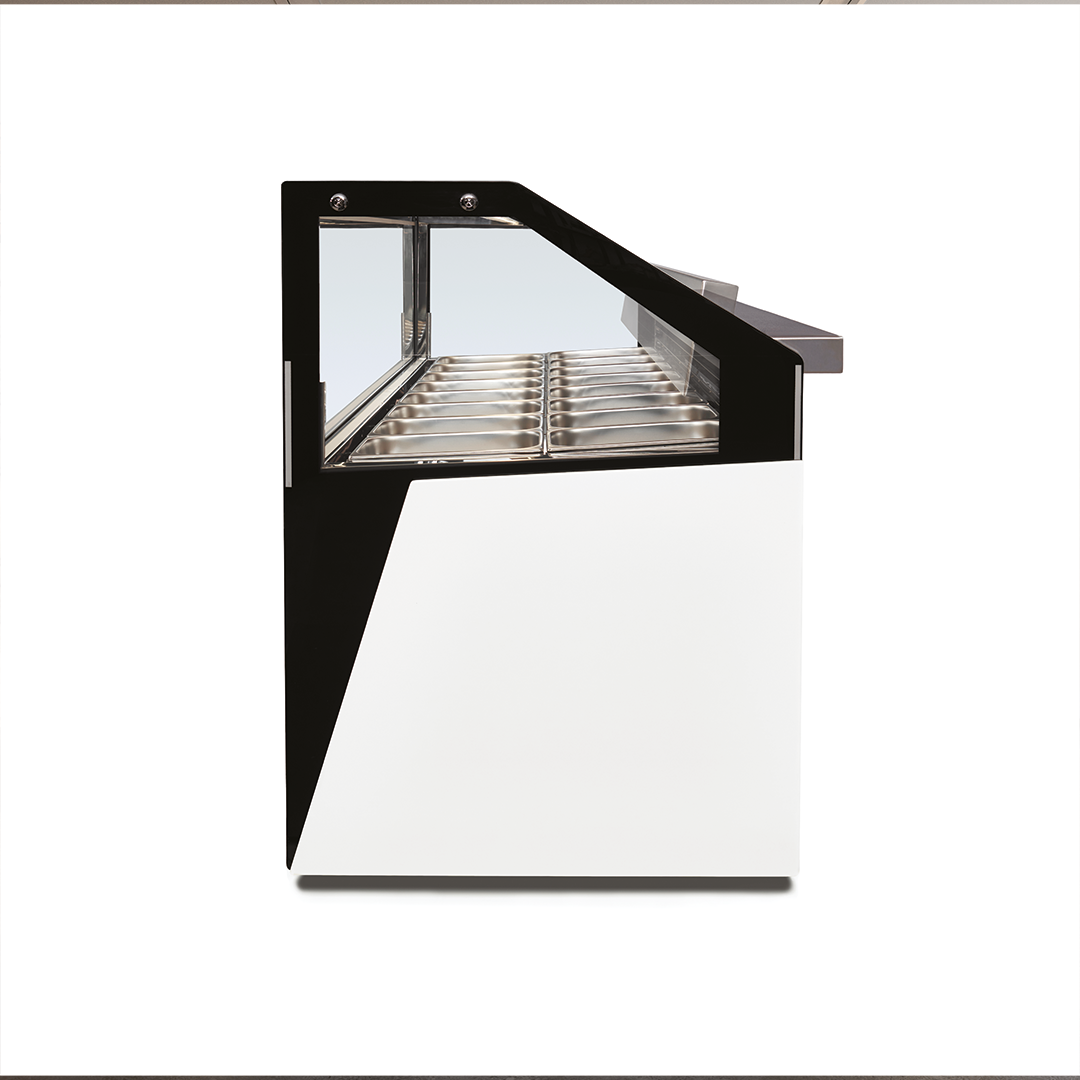

It offers a comopact design with its flat form. The rear counter is
designed to be lifted when passing through narrow spaces and the
showcase reaches 90cm depth, offers a wide counter work area when
lowered again.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered double front and side windows ensure that the viewing angle is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1260 (46.60”)
Length and Depth mm – (inches)
U 1230 / 1565 / 1740 / 2261 (48.42” / 61.61” / 68.50” / 89.01”)
D 900 (35.43”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
With a width of 90 cm, it is easy to pass through the doors and offers more
space on the counter side.
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
RAL lacquer side panels.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Cooling Capacity; Tested in 60% humidity conditions at +35°C
Tub Quantities
