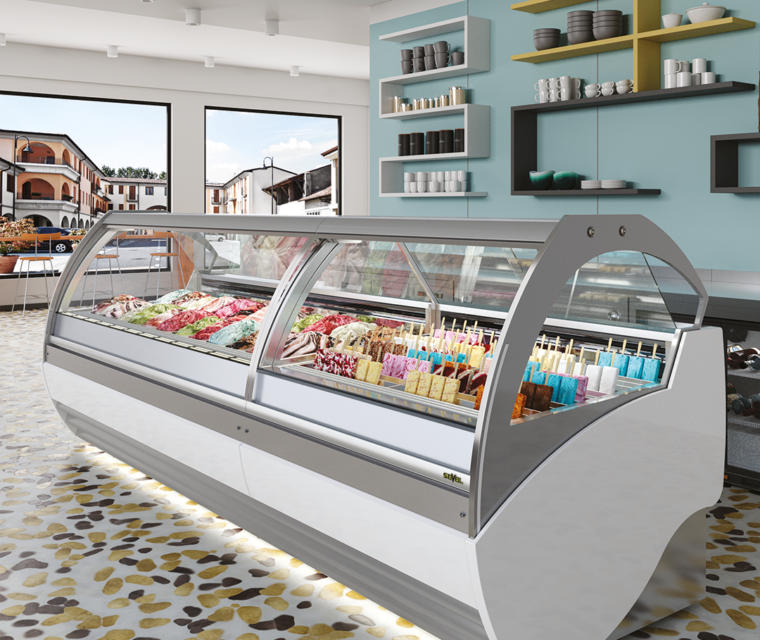

Troy Series offering a classic, modern and sporty look with its curved design.

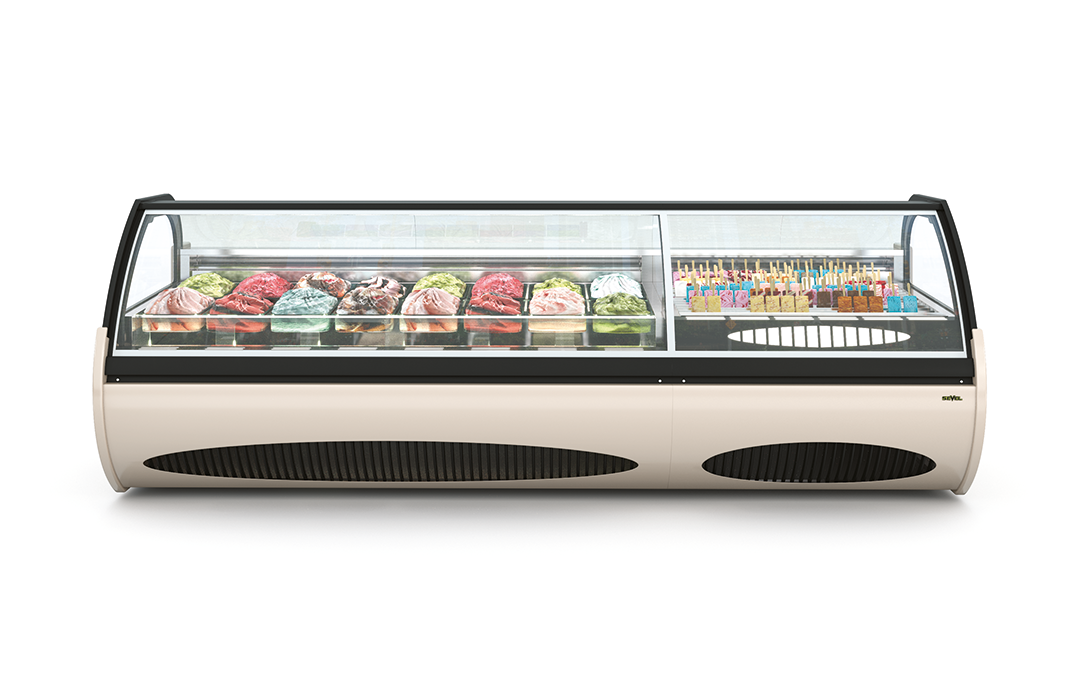

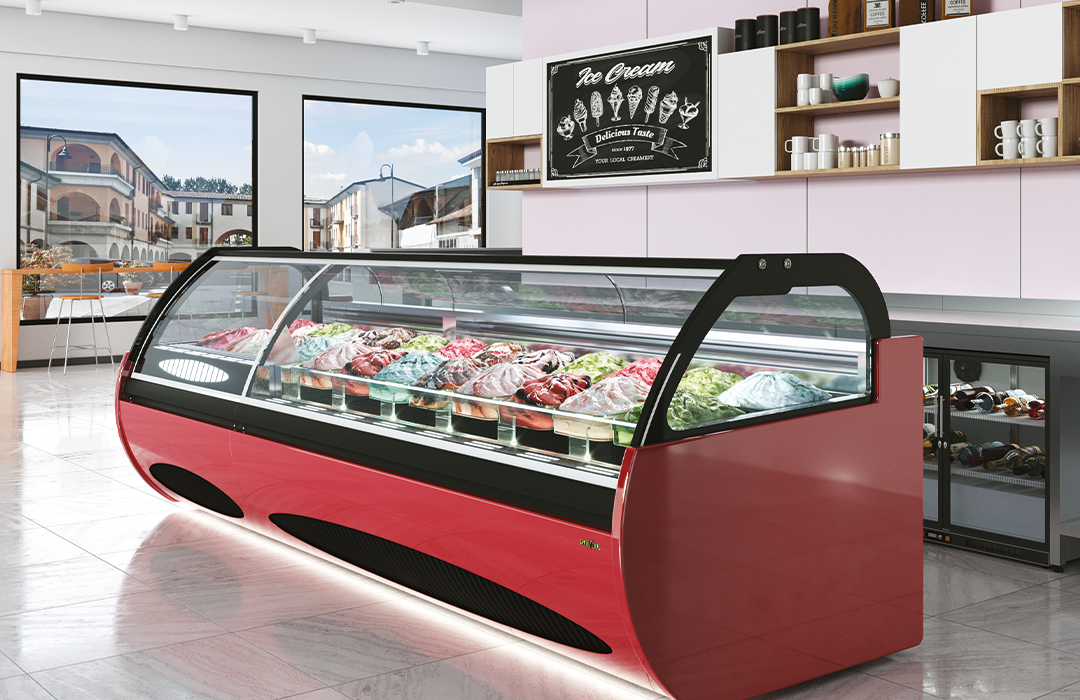

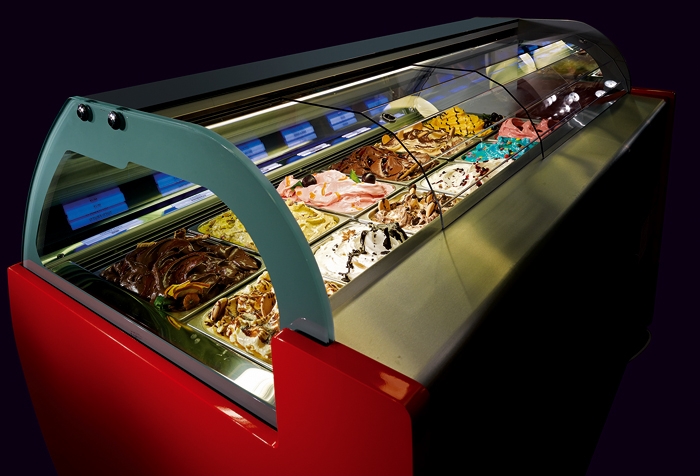

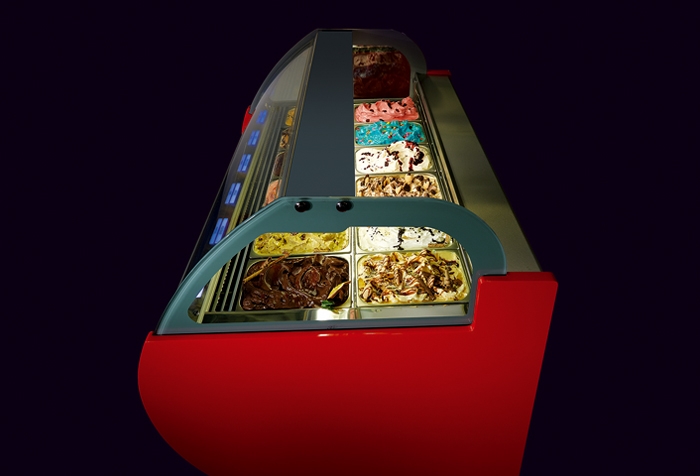

Troy Sport
Troy Sport

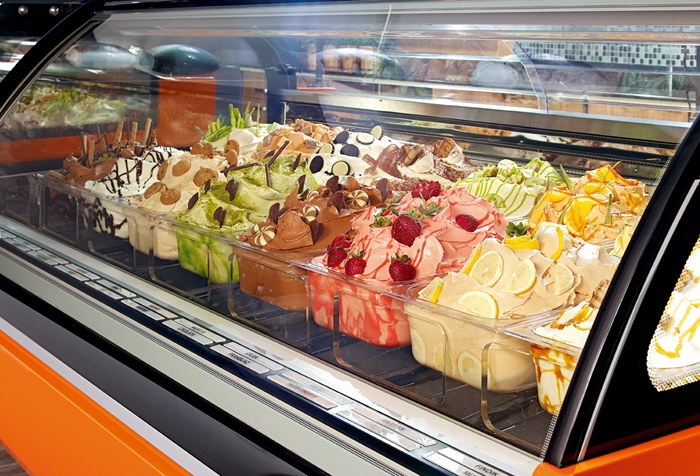

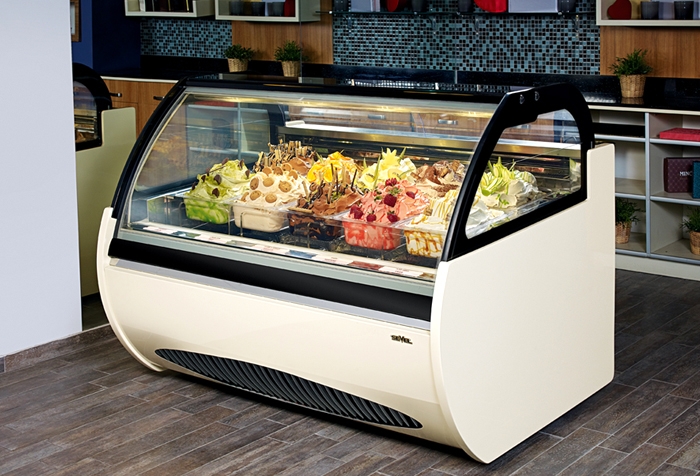

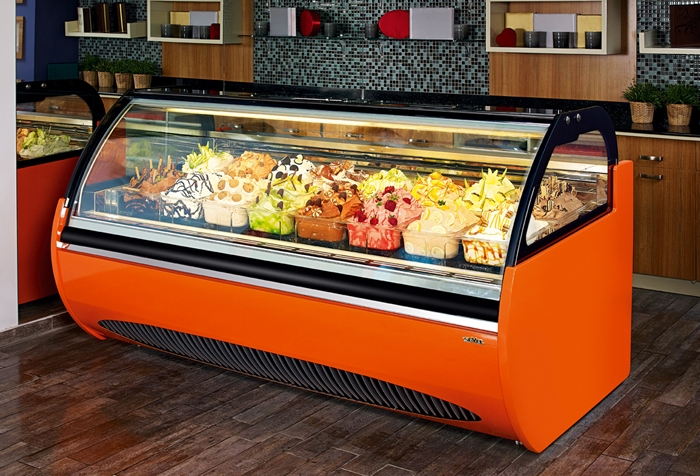

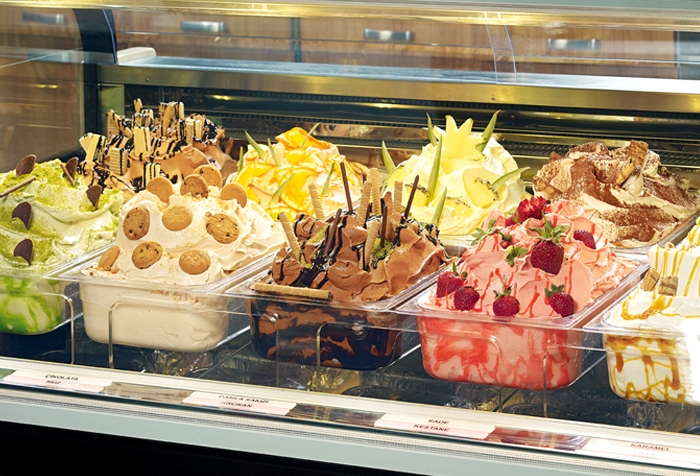

Troy Sport Vision
SPORT DESIGN
Unique sporty look and low to the ground design with curved glass and lines.
Heated and tempered double glazed.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered double front and side windows ensure that the viewing angle is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1210 (47.63”)
Length and Depth mm – (inches)
U 1230 / 1565 / 1735 / 2255 (48.42” / 61.61” / 68.30” / 88.77”)
D 1209 (47.59”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
RAL front and side panels.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Cooling Capacity; Tested in 60% humidity conditions at +35°C
Tub Quantities
Technical specifications

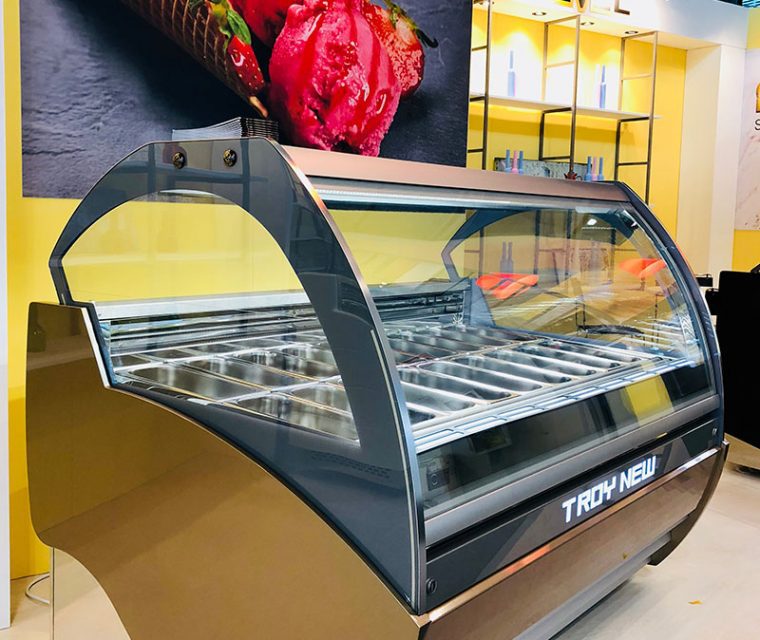

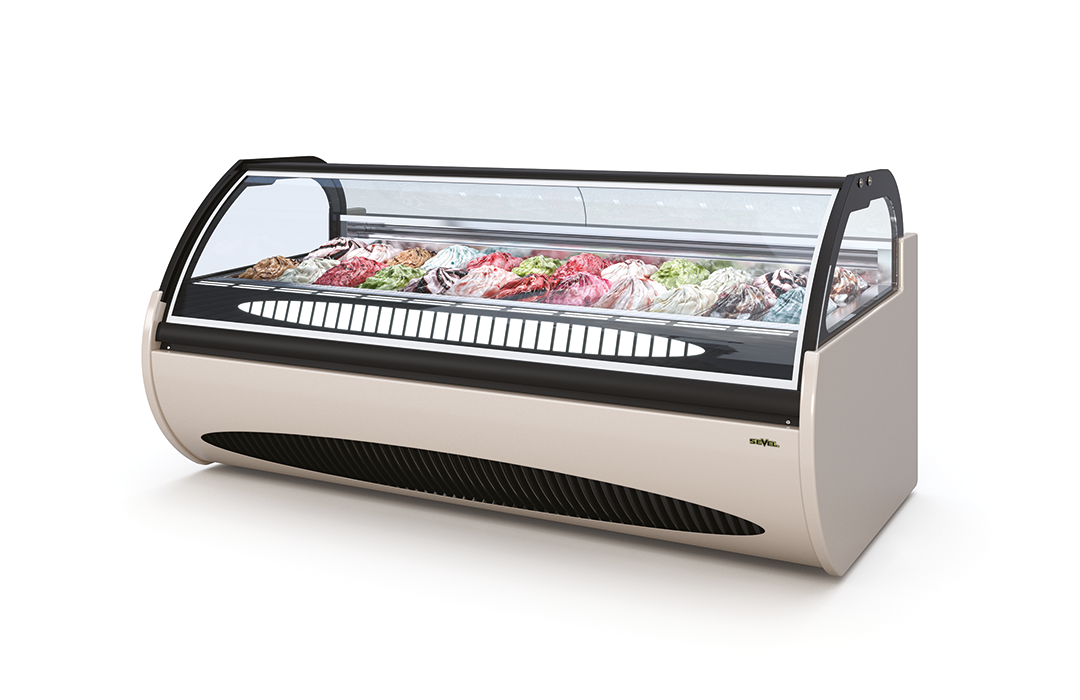

Troy (New)
DESIGN
A modern refurbished look of our standard Troy model showcase.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered double front and side windows ensure that the viewing angle is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1320 (51.96”)
Length and Depth mm – (inches)
U 1230 / 1565 / 1735 / 2255 (48.42” / 61.61” / 68.30” / 88.77”)
D 1161 (45.70”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
RAL front and side panels.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Cooling Capacity; Tested in 60% humidity conditions at +35°C.
Tub Quantities
Technical specifications

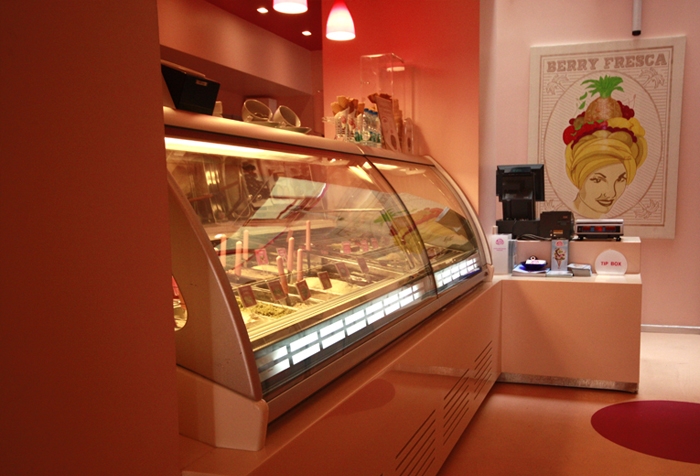

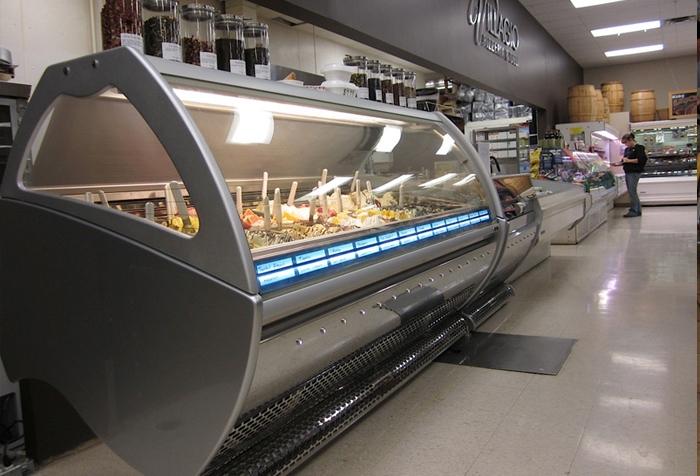

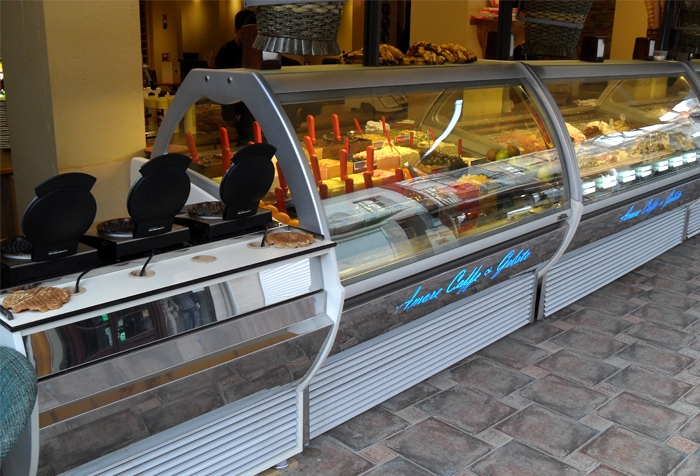

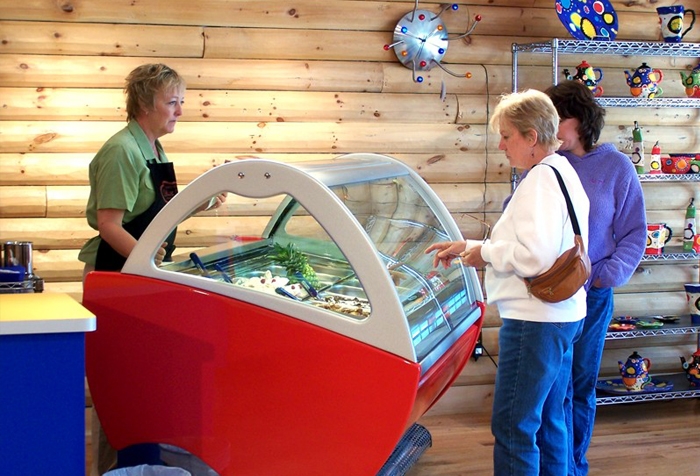

Troy
DESIGN
Original Troy model ice cream aisle.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered double front and side windows ensure that the viewing angle is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1371 (53.97”)
Length and Depth mm – (inches)
U 1225 / 1559 / 1732 / 2251 (48.22” / 61.37” / 68.18” / 88.62”)
D 1190 (46.85”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
RAL front and side panels.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
Option to apply illuminated non-illuminated logo on the front panel.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Cooling Capacity; Tested at +35°C, 60% humidity and ambient conditions.
Flat Glass top counter.
Front Grille Alternatives; Curved Chrome or Flat Aluminum.
Front Panel Options; With Spot Led, Diamond or No Light.
Pans are included.

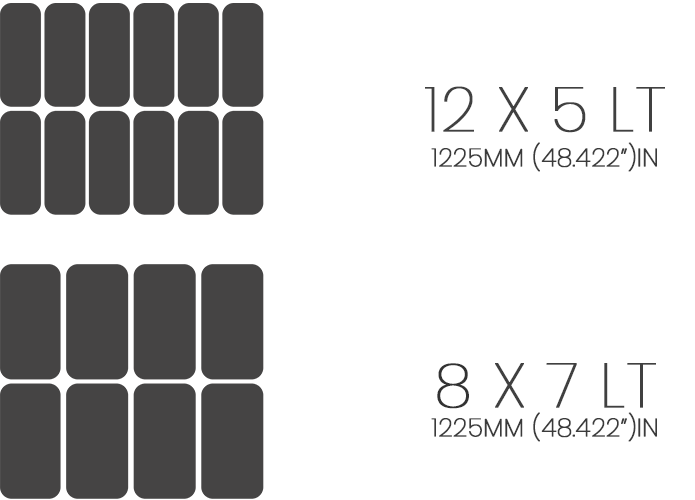

Tub Quantities
Technical specifications
Troy S45G
DESIGN
Unique curves with 45° angle on Troy S45G showcase making 90° in total when two combined.
COOLING
Inside the polyurethane monolithic case there is one twin or Semi-Hermetic compressor, heated and tempered double front and side windows ensure that the visibility is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1380 (54.33”)
Angle and Depth mm – (inches)
A 45°
D 1251 (49.25”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
RAL front and side panels.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
Option to apply illuminated non-illuminated logo on the front panel.
Wheel and fixed feet.
Rear Plexiglass sliding door.
Front Grille Alternatives; Curved Chrome or Flat Aluminum.
Front Panel Options; With Spot Led, Diamond or No Light.
Pans are included.
Cooling Capacity; Tested at +35°C, 60% humidity and ambient conditions
Tub Quantities
Technical specifications
Troy (Pastry)
TROY FOR PASTRY
It is designed for pastry and chocolate display of Troy series models. Base+ two and one shelf options are available.
Temperature and humidty settings are seperately set for pastry and chocolate showcases.
Height mm – (inches)
1371 (53.97”) Taban+ iki veya bir raf
Length and Depth mm – (inches)
U 1225 / 1559 / 1732 / 2251 (48.22” / 61.37” / 68.18” / 88.62”)
D 1190 (46.85”)
S45P: 45°
Cooling Capacity:
Cake: +4/+8C (+39/+46F), %45-50 moisture
Chocolate: +12/+18C (+53.6/+64.4F), %30 moisture
Detail;
Polyurethane solid case.
RAL lacquer front and side panels.
Heated and tempered double glazing.
Openable windshield
LED lighting.
Option to apply illuminated non-illuminated logo on the front panel.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Cooling Capacity; Tested at +35°C, 60% humidity and ambient conditions.
Top Counter curved Glass.
Front Grille Alternatives; Curved Chrome or Flat Aluminum.
Front Panel Options; With Spot Led, Diamond or No Light.
