Eye-catching design made with top quality materials offering top class refrigeration.

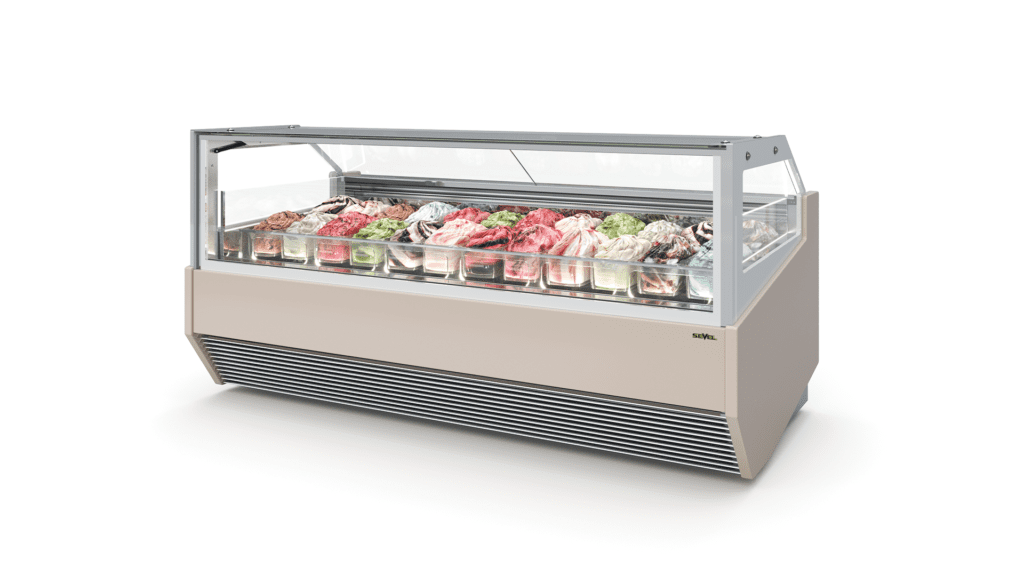

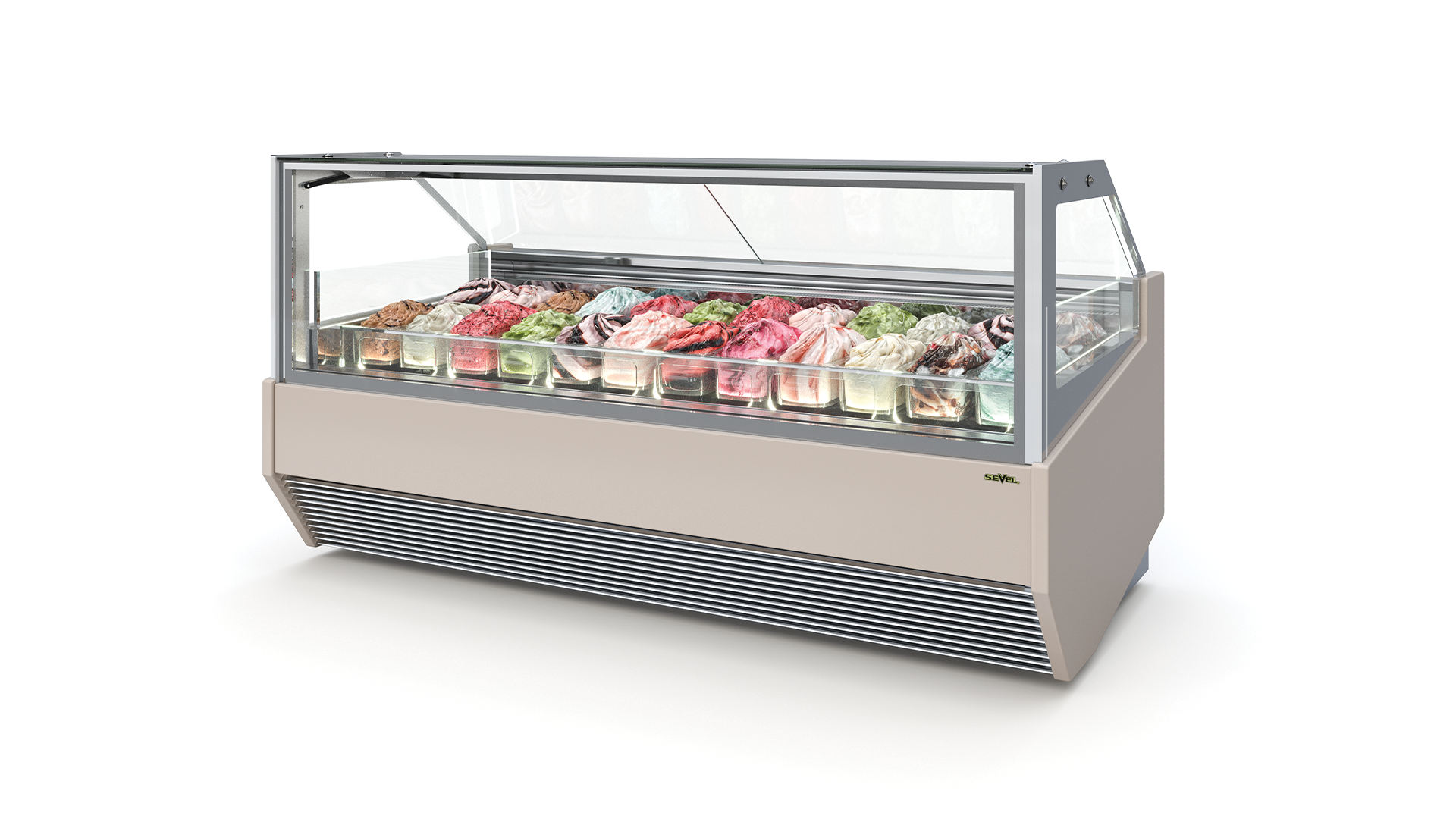

Smyrna New
Smyrna New

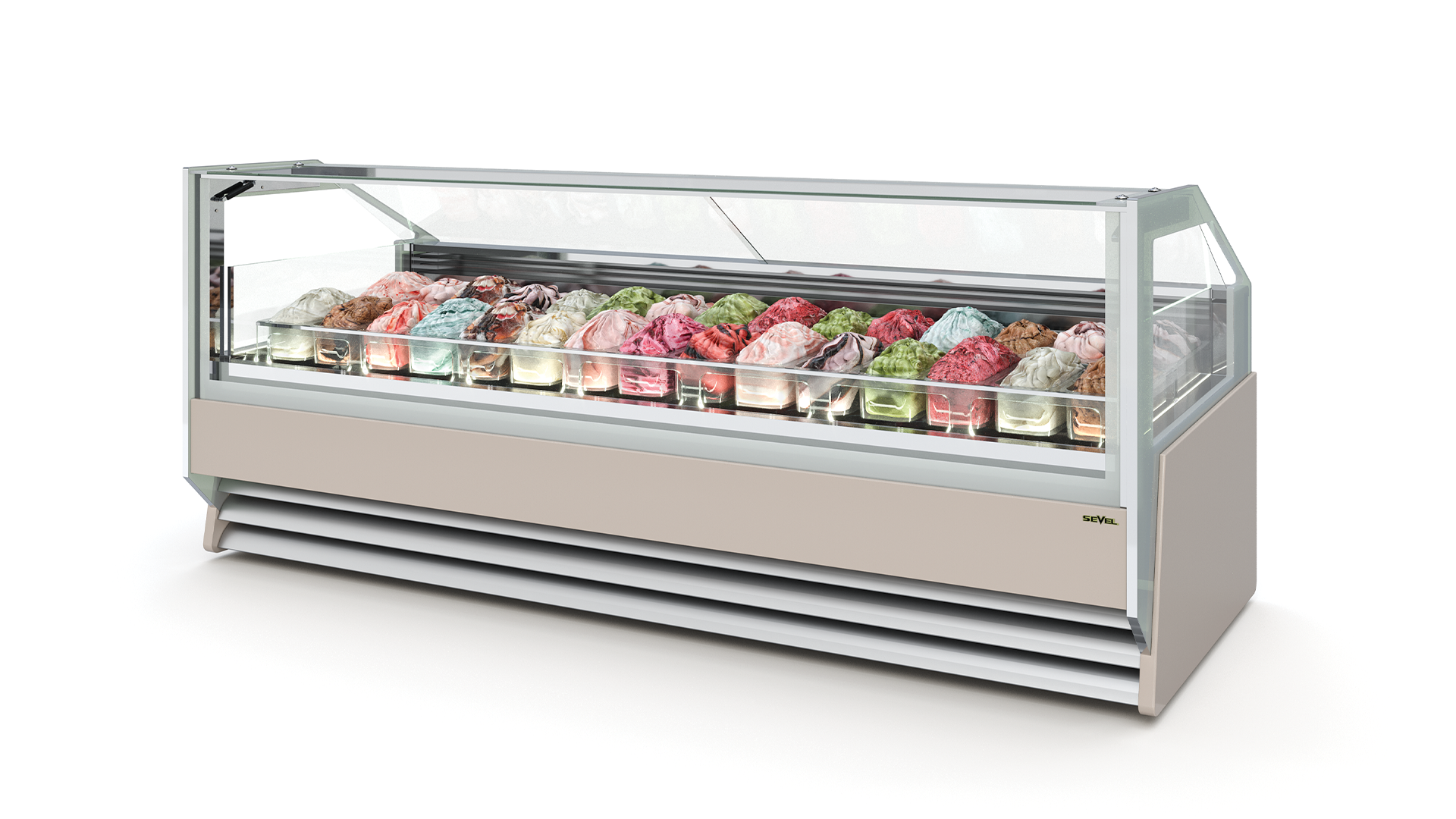

Smyrna New Vision
FORM AND FUNCTION
Design that fits to modern and classical architectures. It is offered with two different glass heights. The top glass can be opened for easy cleaning. The form designed to increase interaction with the salesperson behind the counter. “Vision” design with transparent polycarbonate pans and LED lighting or stainless steel pans.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered front and side windows ensure that the visibility is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1170 (46.06”)
1320 (51.96”)
Length and Depth mm – (inches)
U 1230 / 1565 / 1735 / 2255 (48.42” / 61.61” / 68.30” / 88.77”)
D 1137 (44.76”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable top glass with hydraulic mechanism.
LED lighting.
RAL front and side panels.
Illuminated or non-illuminated front panel with logo/text application.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Glass screen printing color in gray for standard height model(1320mm),
white for Low model(1170mm).
Top glass heated option in Low model(1170mm).
Cooling Capacity; Tested under 60% humidity conditions at +35°C.
Tub Quantities
Technical specifications

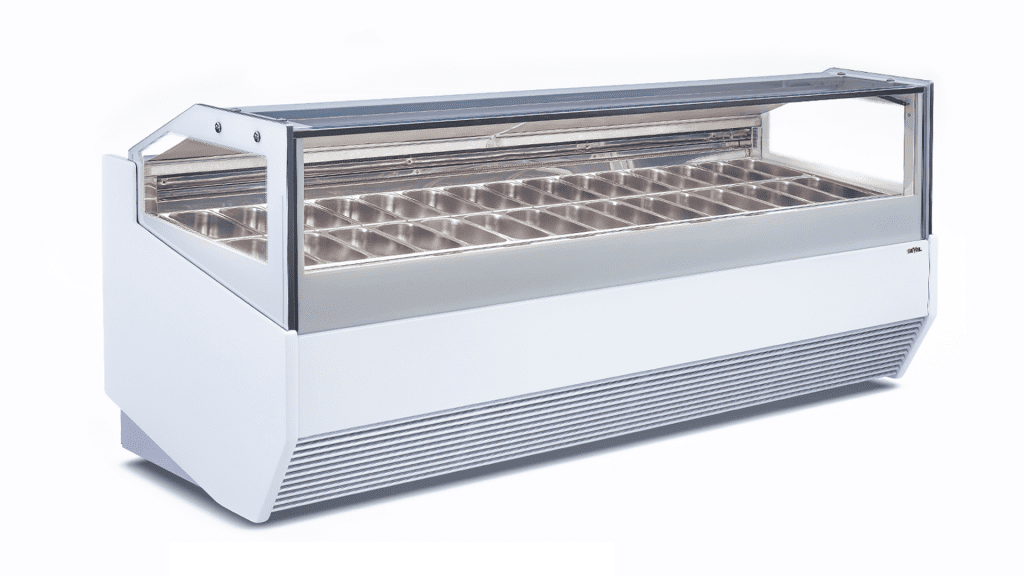

Smyrna New Long (30 Pans)
Smyrna New Long

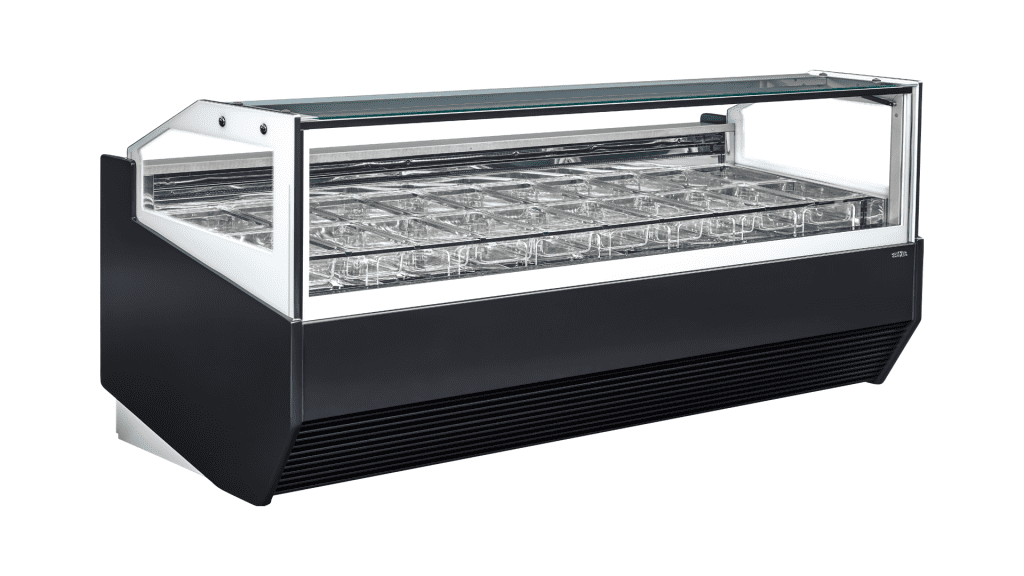

Smyrna New Vision Long
LARGEST ICE CREAM/GELATO SHOWCASE
Smyrna New Long is the largest gelato/ice cream showcase with 30
flavor capacity in single showcase. In its standard production there are
double compressors inside the unit; one Semi-Hermetic and one Hermetic.
Sustainable cooling in a large internal volume with strong cooling performance and unique insulation.
GLASS HEATING
Heated and tempered double glazing. Heated and tempered double glazing prevents moisture and condensation.
VISION OR STANDARD FRONT DESIGN
Transparent polycarbonate pans with LED under pans “Vision” design or
stanless steel pans.
Height mm – (inches)
1170 (46.06”)
1320 (51.96”)
Length and Depth mm – (inches)
U 1230 / 1565 / 1735 / 2255 (48.42” / 61.61” / 68.30” / 88.77”)
D 1137 (44.76”)
Cooling Capacity
-18,-22C / 0,-7.6F
Detail;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable top glass with hydraulic mechanism.
LED lighting.
RAL front and side panels.
Illuminated or non-illuminated front panel with logo/text application.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Glass screen printing color in gray for standard height model(1320mm),
white for Low model(1170mm).
Top glass heated option in Low model(1170mm).
Cooling Capacity; Tested under 60% humidity conditions at +35°C.
Tub Quantities
Technical specifications

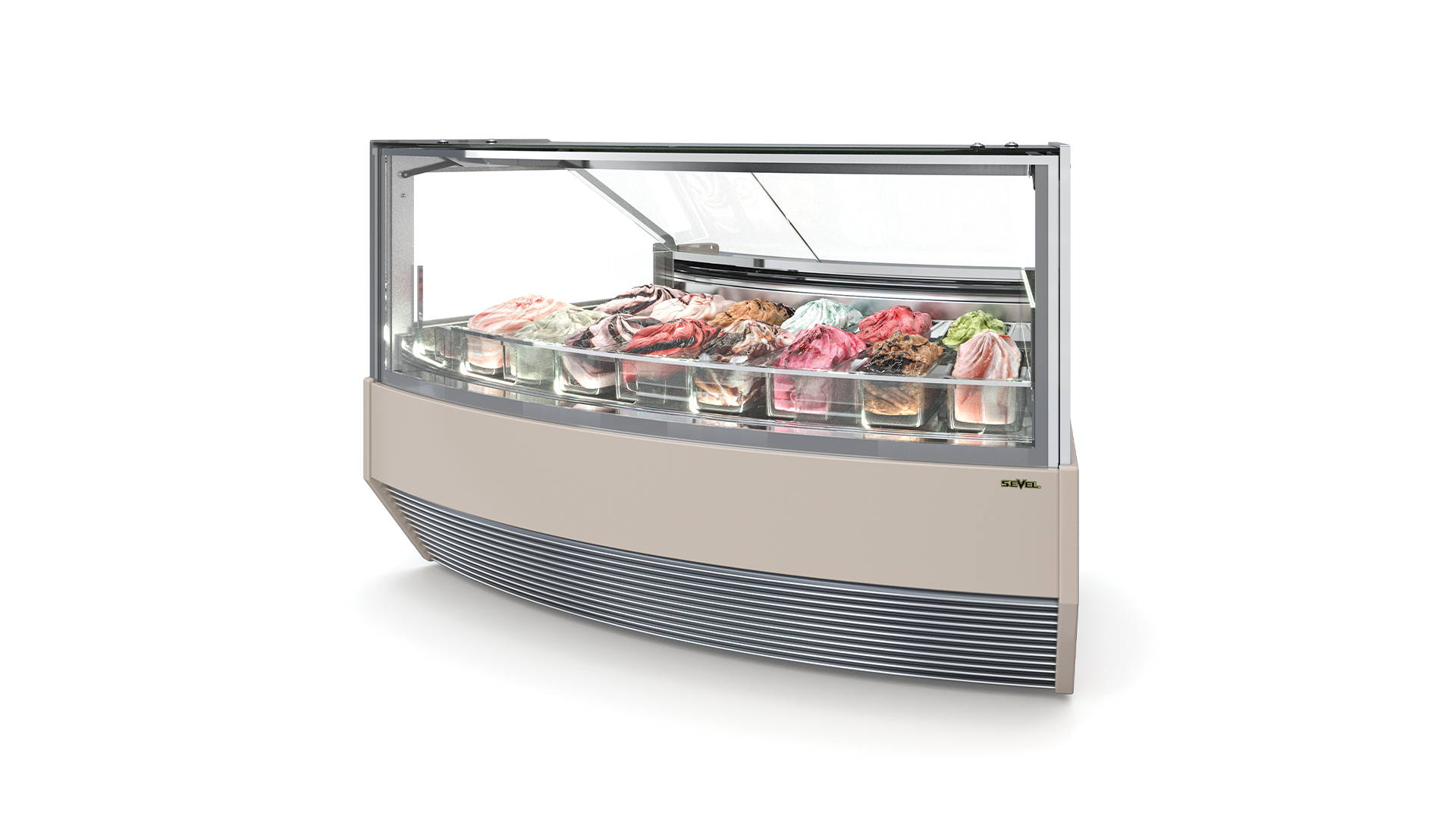

Smyrna New S45
Smyrna New S45

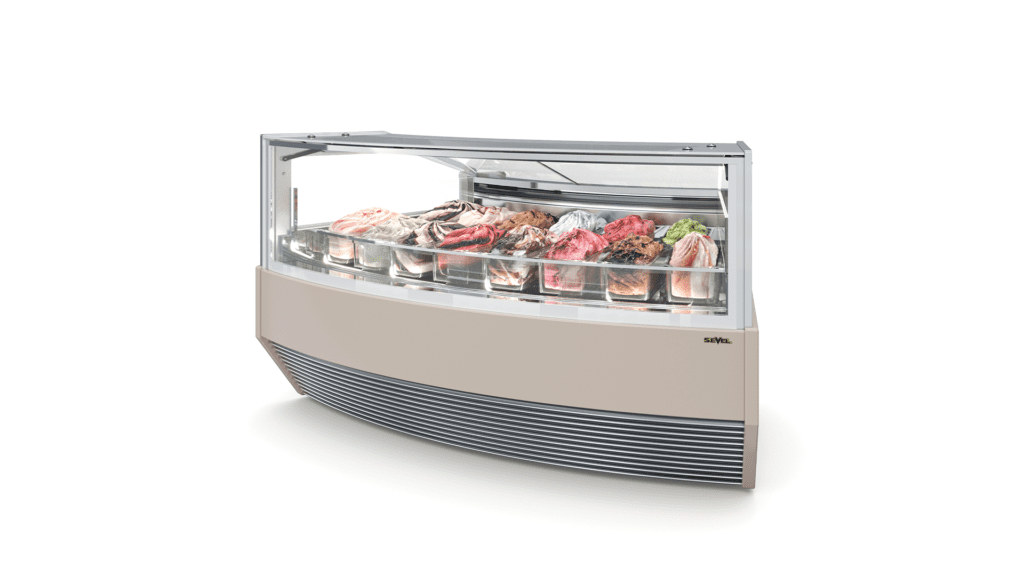

Smyrna New Vision S45
CURVED S DESIGN
A unique design with a curved 45 degree angle. Make a difference in your space with a total of 90 degrees angle with two S45 side by side.
Height mm – (inches)
1170 (46.06”)
1320 (51.96”)
Angle and Depth mm – (inches)
A 45°
D 1137 (44.76”)
Cooling Capacity
-15,-20C / 5,-4F
Detail;
Specially developed Dual Time Defrost System. (220V only)
Polyurethane solid case.
Heated and tempered double glazing.
Openable top glass with hydraulic mechanism.
LED lighting.
RAL lacquer front and side panels.
Wheel and fixed feet.
Rear Plexi glass sliding door
Ice cream tubs are included.
Glass screen printing color in gray for standard model, white for Low model.
Cooling Capacity; Tested under 60% humidity conditions at +35°C
Technical specifications

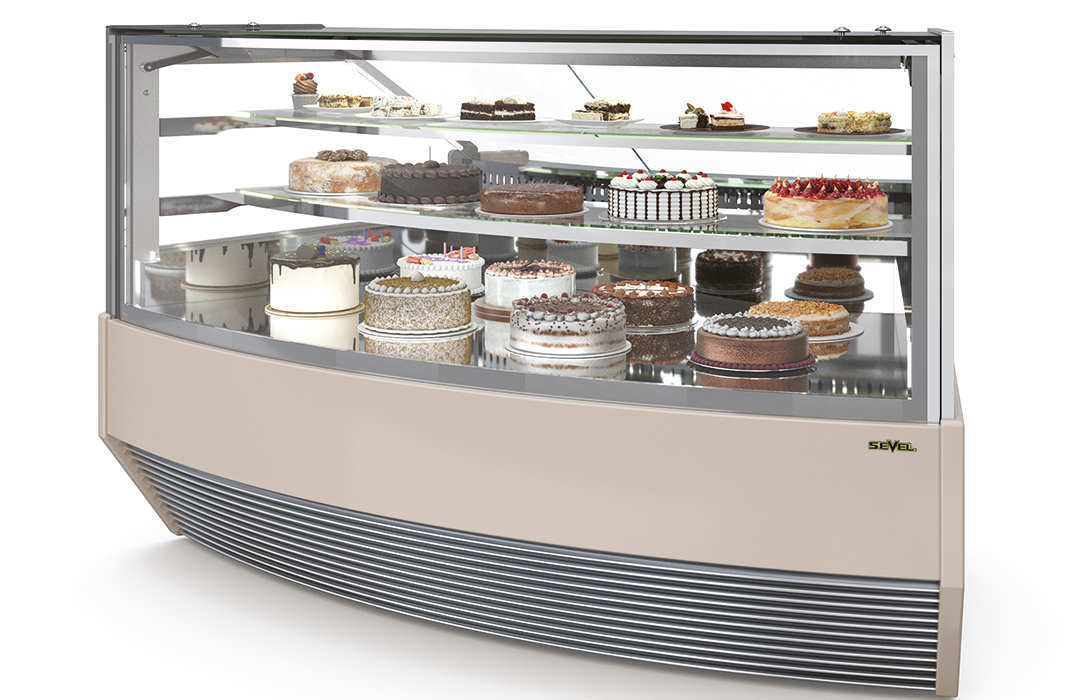

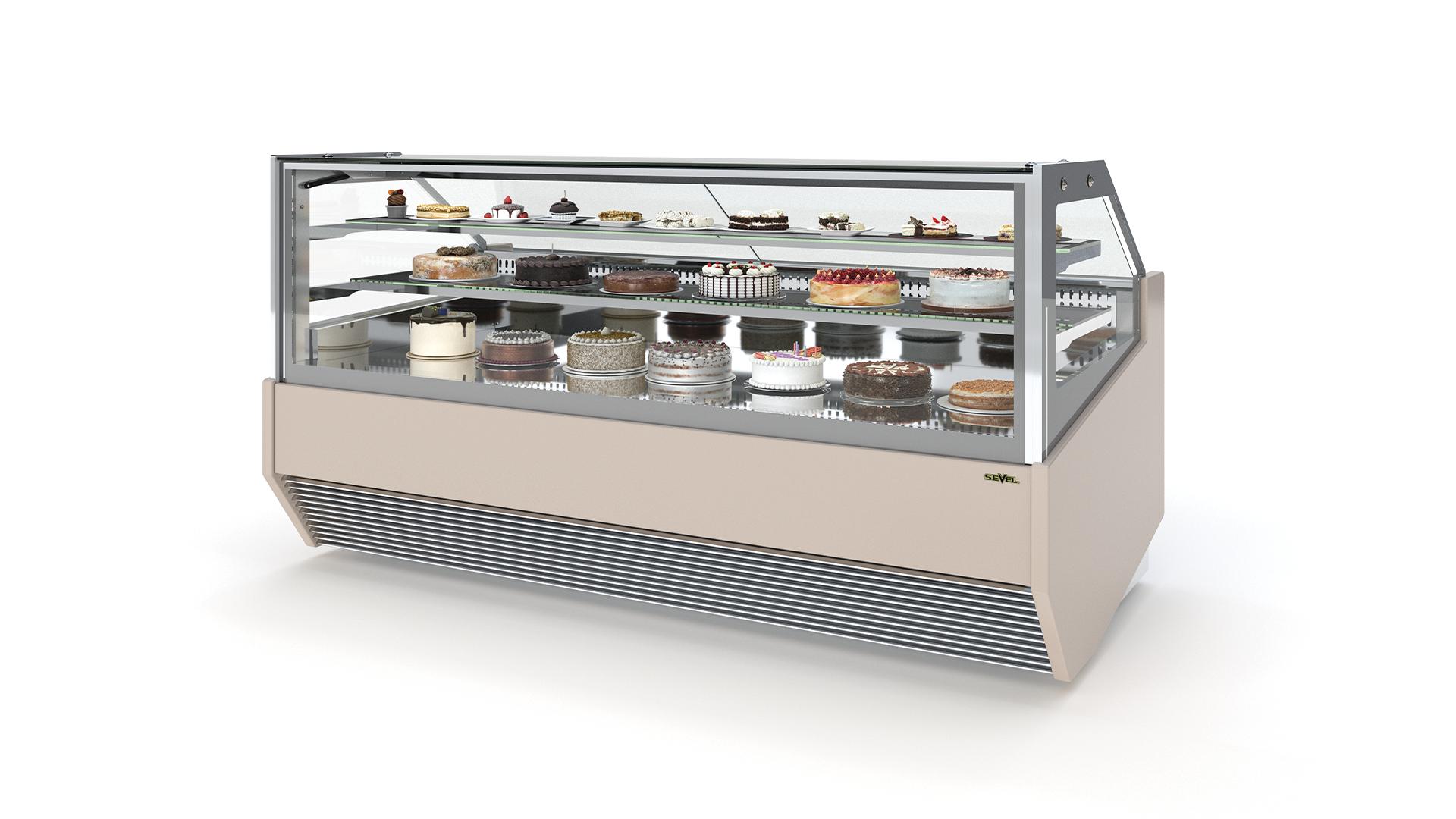

Smyrna Vision New Pastry
SMYRNA FOR PASTRY
It is designed for pastry and chocolate display in the Smyrna New series. Standard height base + two shelves or low glass (Low) base + one shelf options are available.
Temperature and humidty settings are seperately set for pastry and chocolate showcases.
Height mm – (inches)
1170 (46.06”) Taban+ bir raf
1320 (51.96”) Taban+ iki raf
Length and Depth mm – (inches)
U 1230 / 1565 / 1735 / 2255 (48.42” / 61.61” / 68.30” / 88.77”)
D 1137 (44.76”)
S45P: 45°
Cooling Capacity
Cake: +4/+8C (+39/+46F), %45-50 moisture
Chocolate: +12/+18C (+53.6/+64.4F), %30 moisture
Detail;
Polyurethane solid case.
Heated and tempered double glazing.
Openable top glass with hydraulic mechanism.
LED lighting.
RAL lacquer front and side panels.
Illuminated or non-illuminated front panel with logo/text application.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Ice cream tubs are included.
Glass screen printing color in gray for standard model, white for Low model.
Cooling Capacity; Tested under 60% humidity conditions at +35°C.
