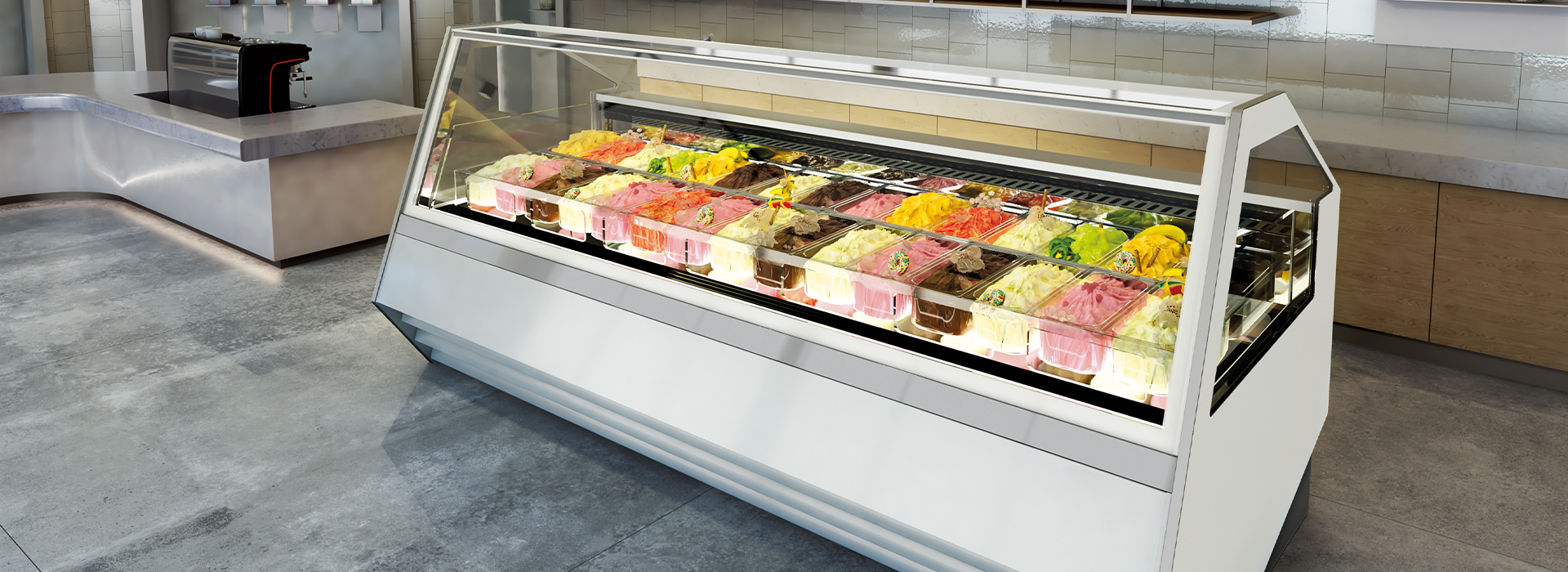

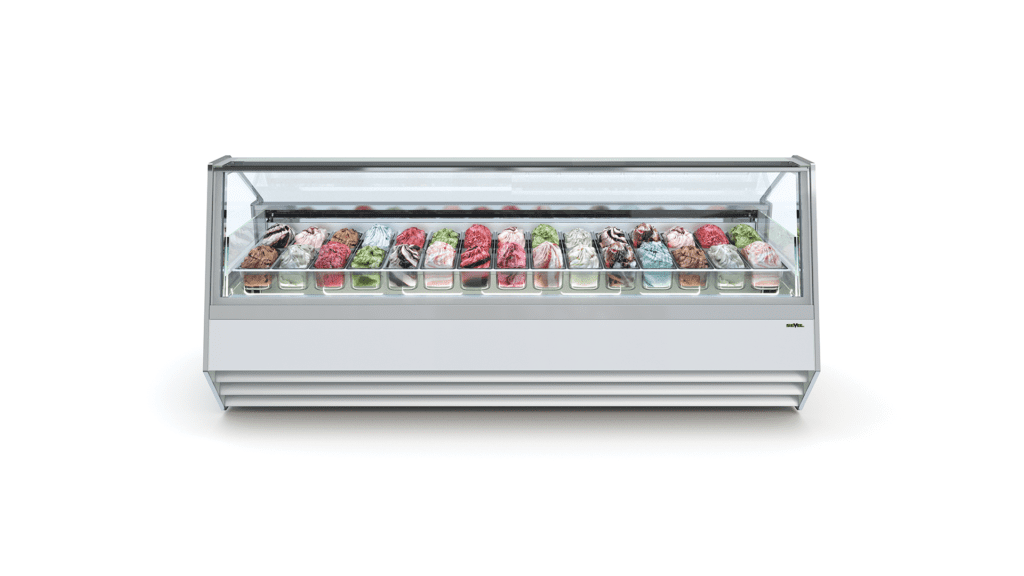

Inclined form and Vision design with transparent pans to maximize view.

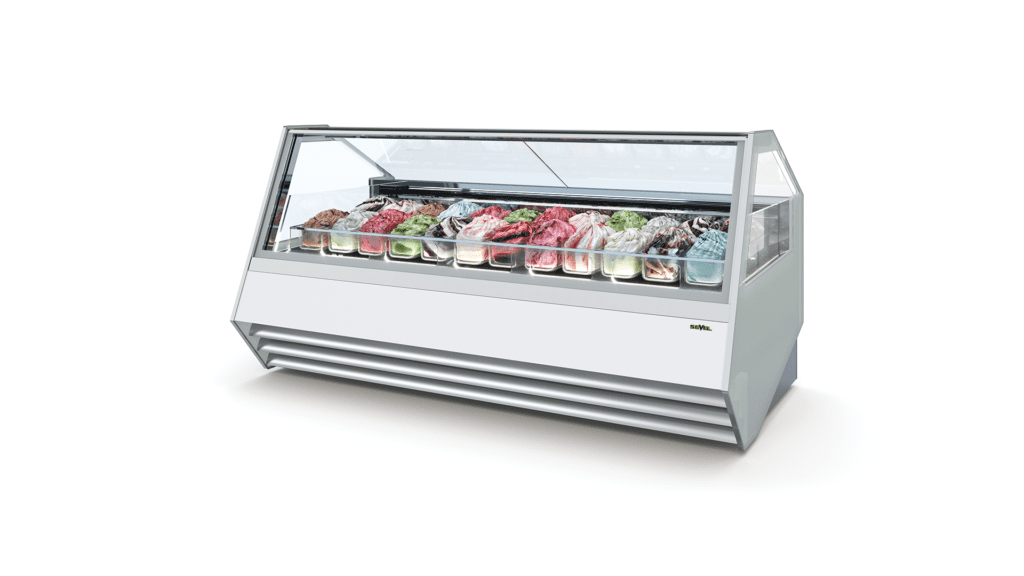

Prisma Vision New
30 FLAVORS IN A SINGLE SHOWCASE
The option of serving 30 flavors at the same time in a single showcase.
SHARP DESIGN

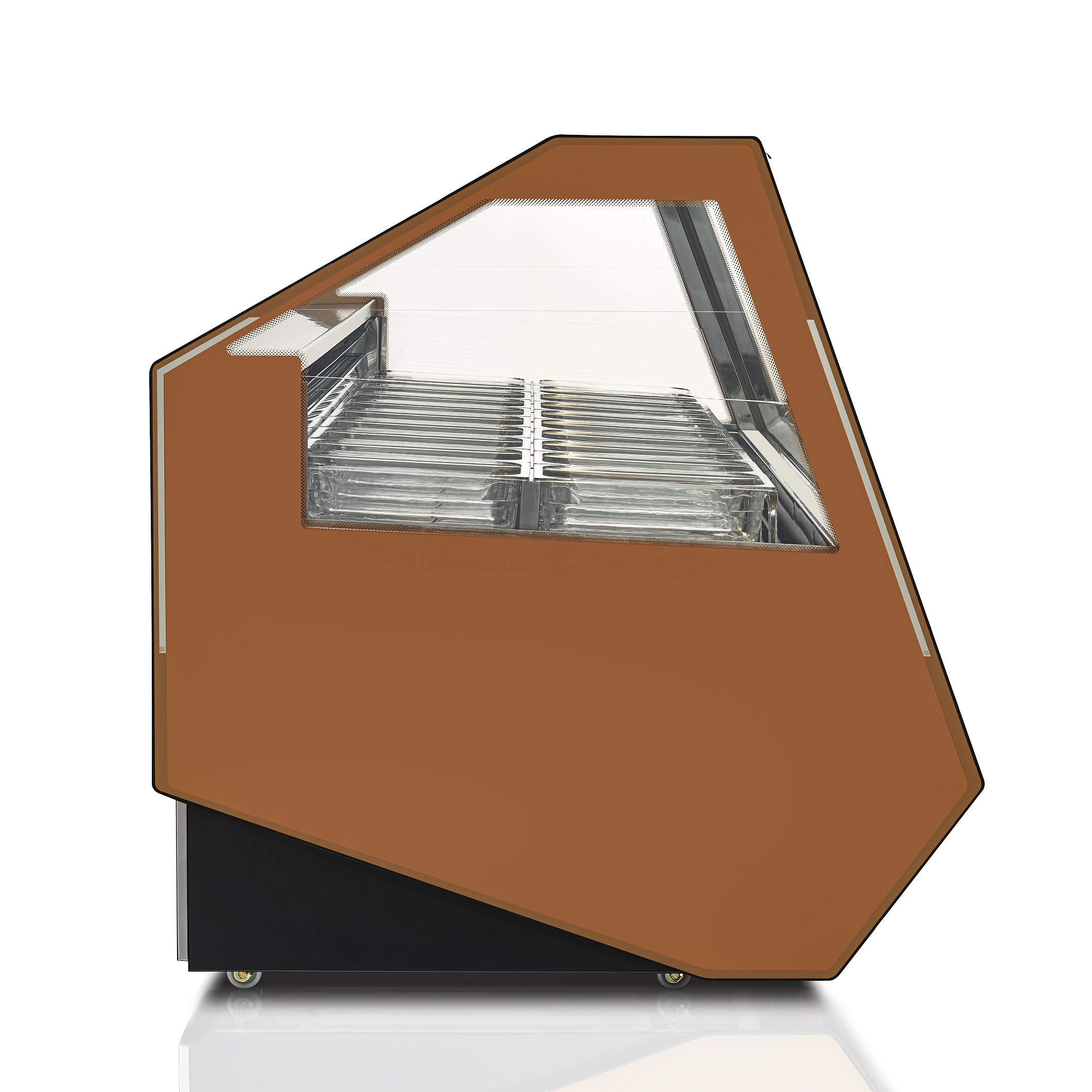

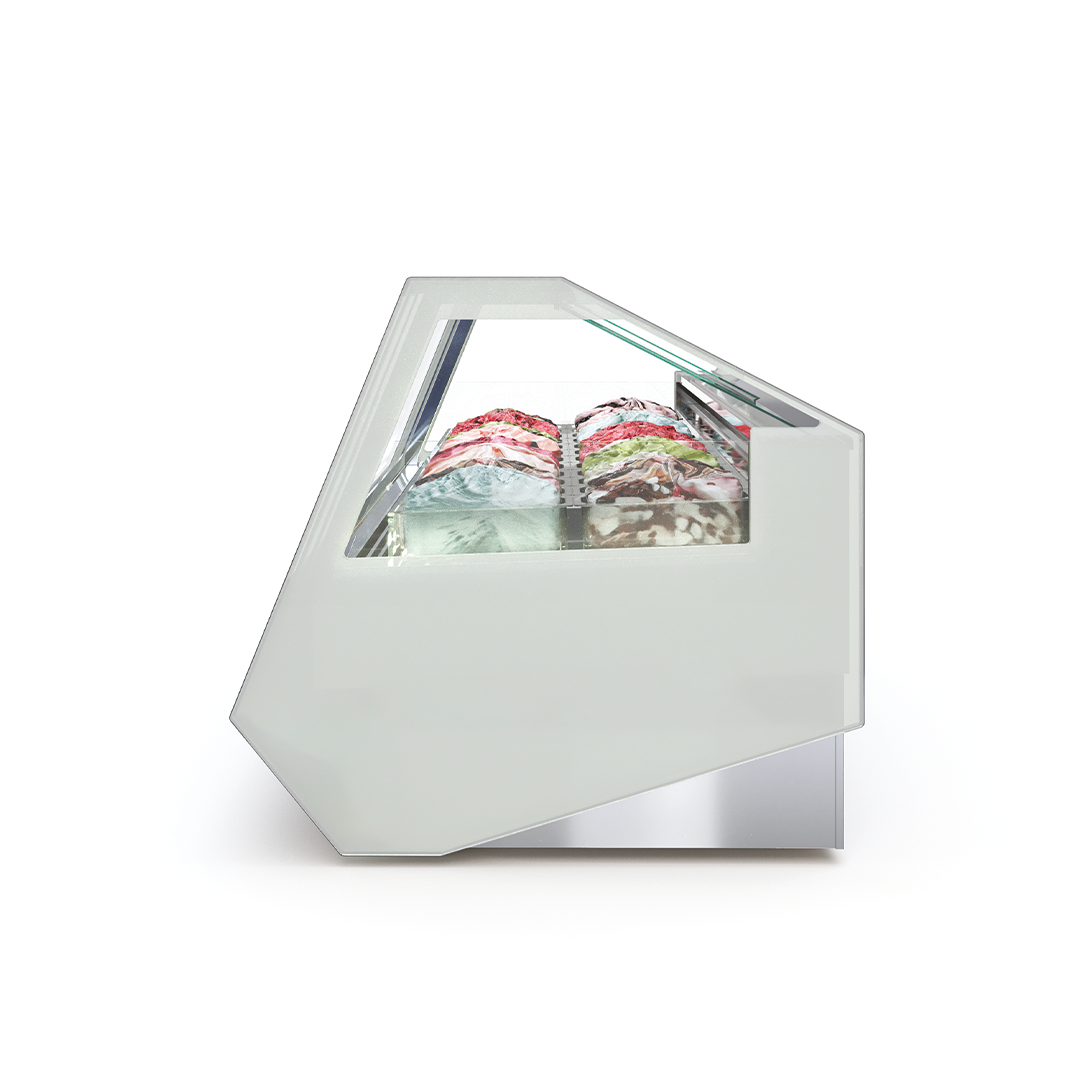

The inclined modern design of the Prisma series combined with the Vision look. While attracting attention with its impressively simple design, your products will look magnificent. More visibility with Vision view on the side glass panels as well.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 18G and above), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered front and side windows ensure that the visibility is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1269 (49.96”)
Length and Depth mm – (inches)
U 1200 / 1705 / 2226 / 2650 (47.24” / 67.12” / 87.63” / 104.33”)
D 1217 (47.91”)
Cooling Capacity
-18 / -22 C (0 / -7.6 F)
Details;
Double hermetic compressors (18 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
It is produced as Vision view with transparent polycarbonate tub.
RAL front panel.
Wheels with/without brakes and/or fixed feet.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Cooling Capacity; Tested under 60% humidity conditions at +35°C.

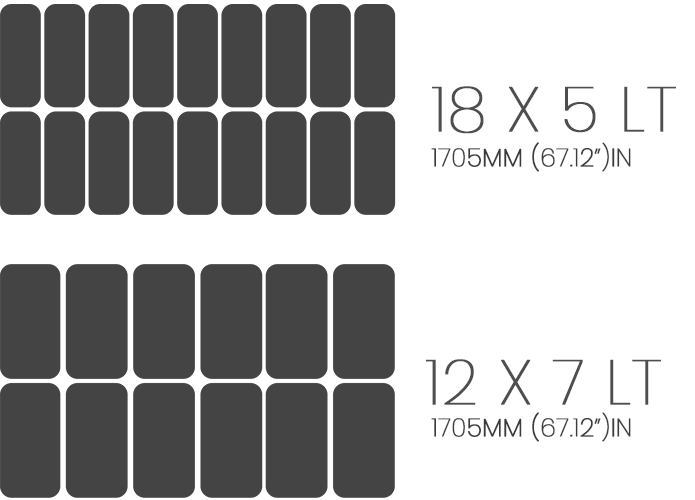

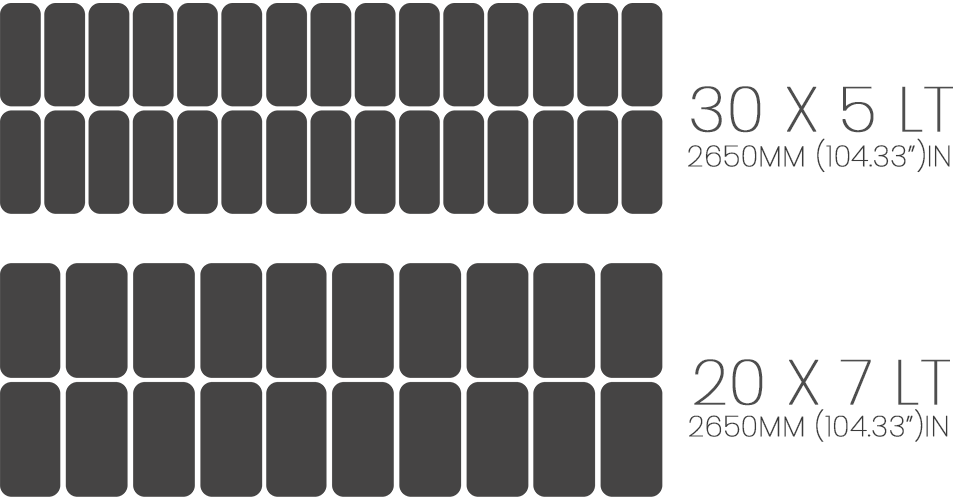

Tub Quantities
