MX series offers frameless minimal design formed by glass and metal.
Draws attention with its clean design while highlighting the products in it.

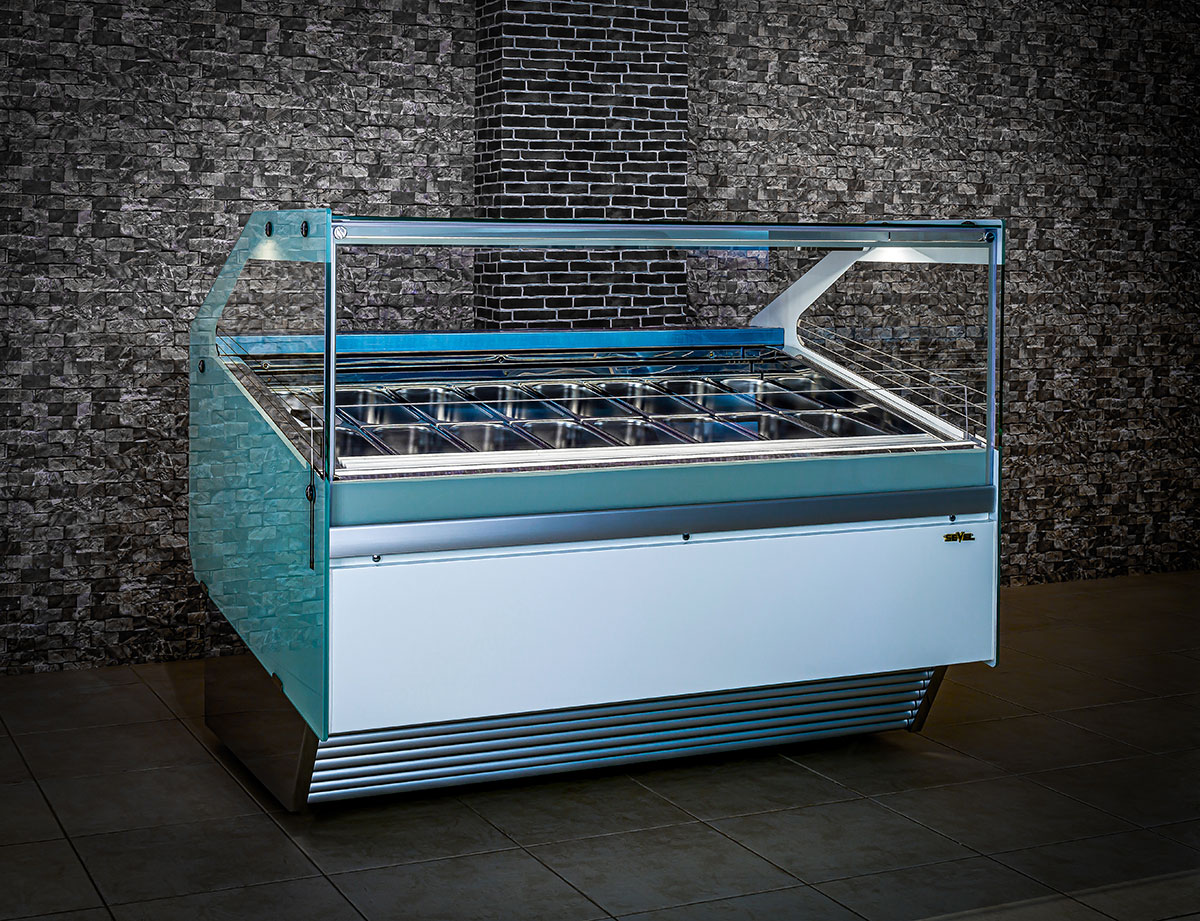

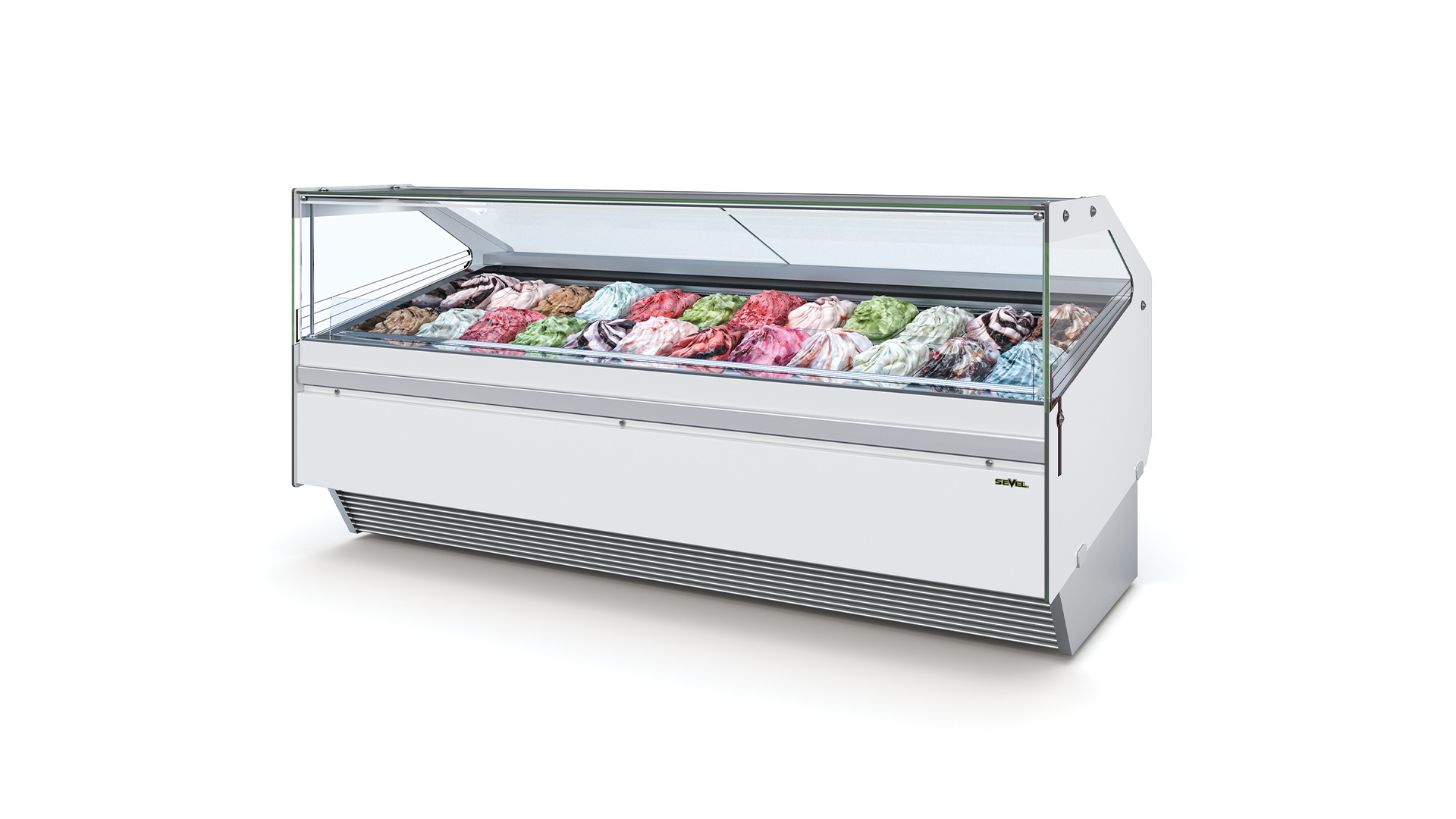

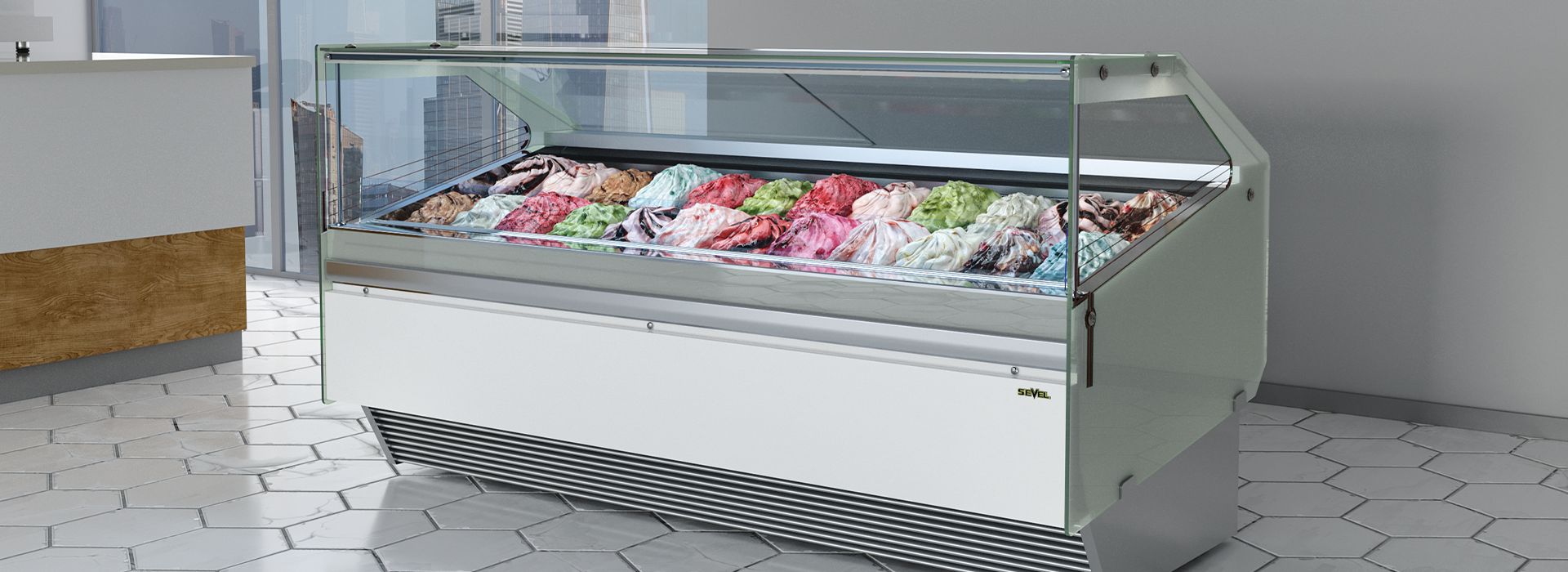

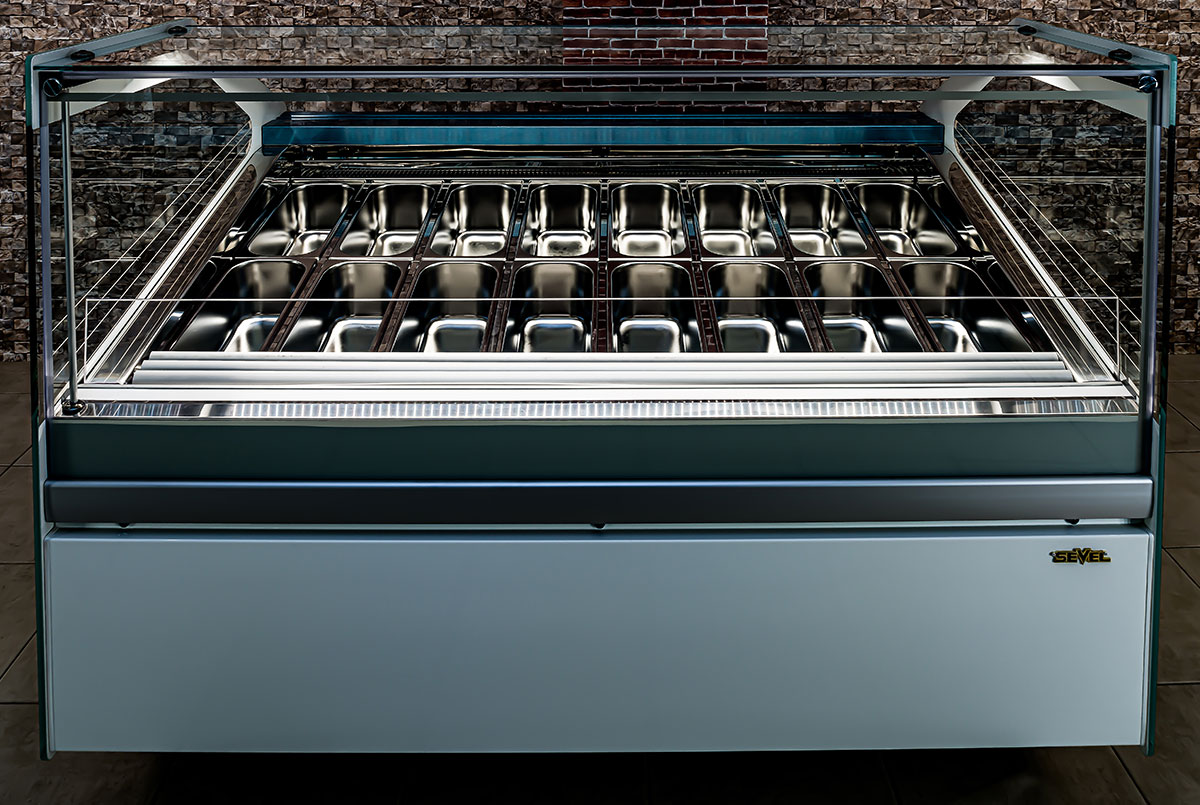

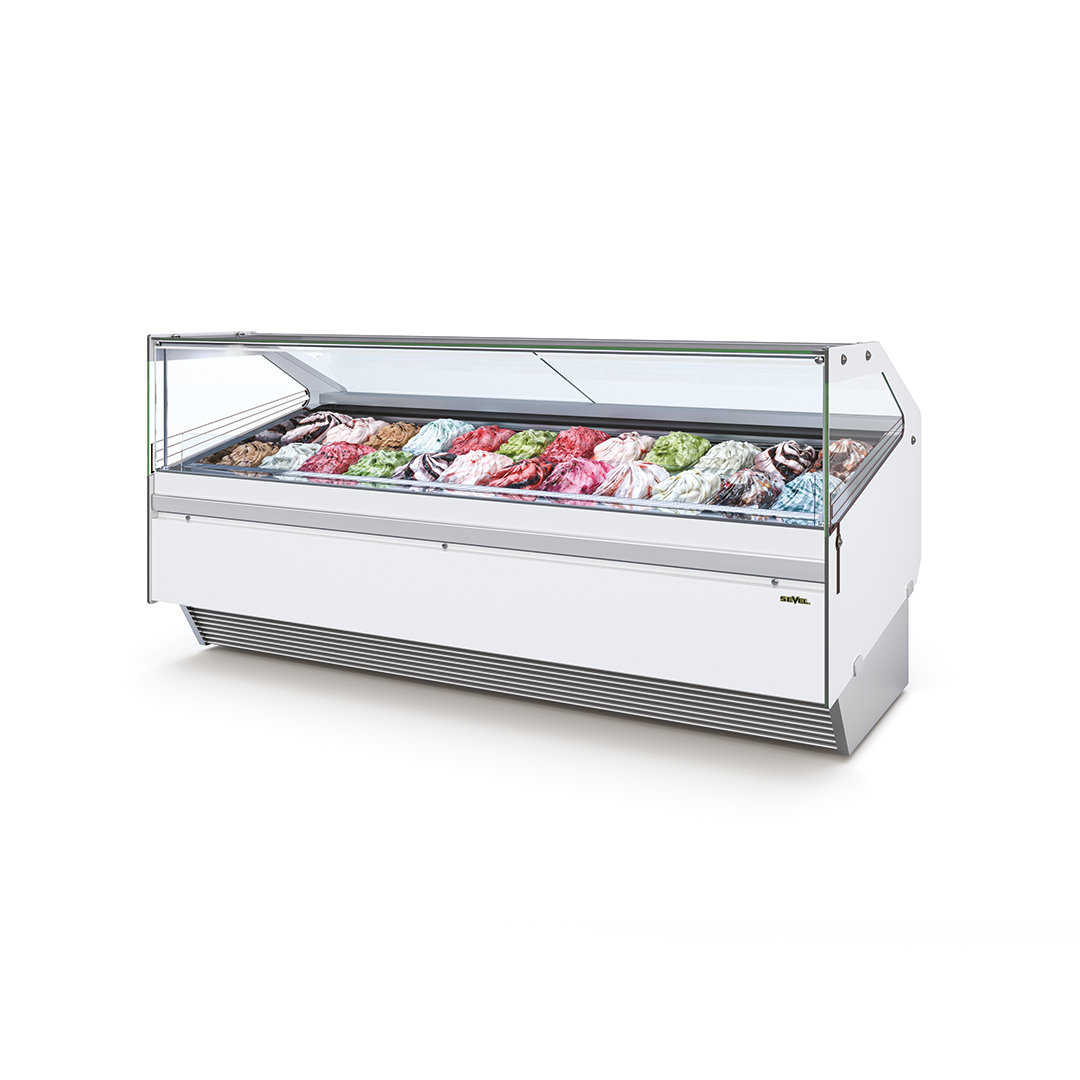

MX Flat
THIN AND MINIMAL DESIGN

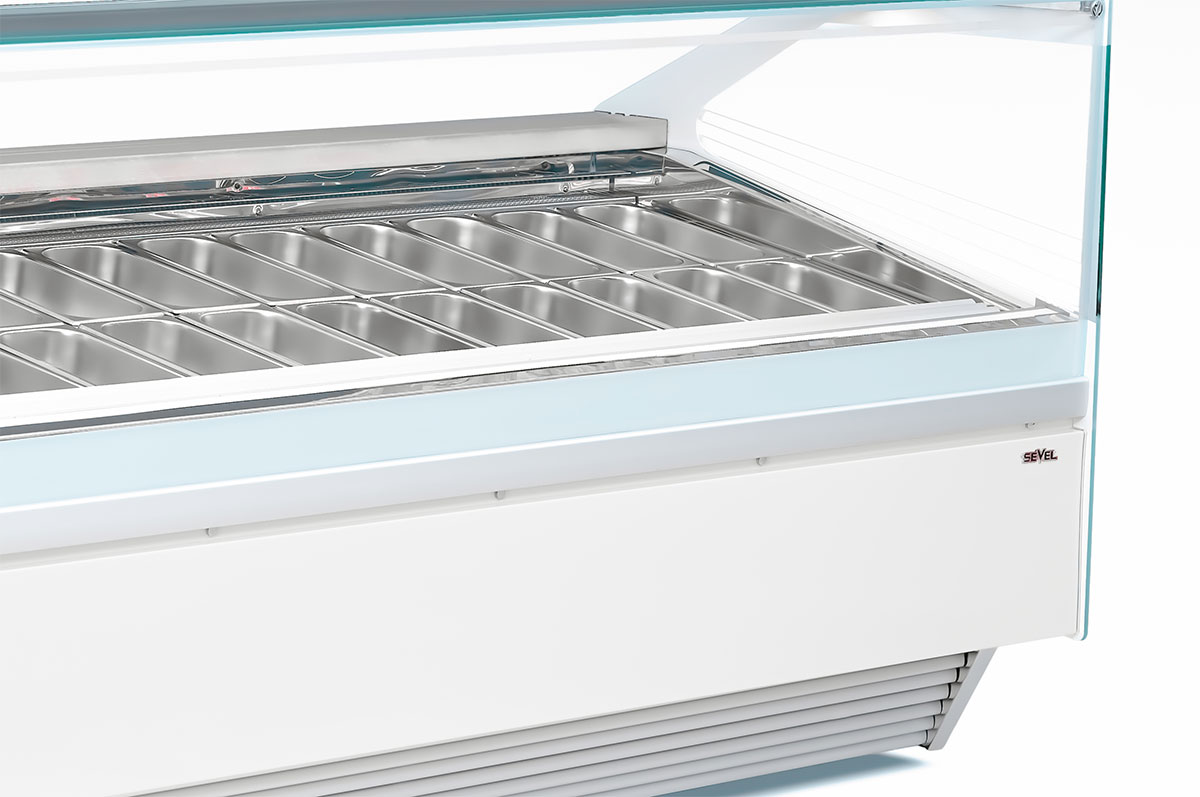

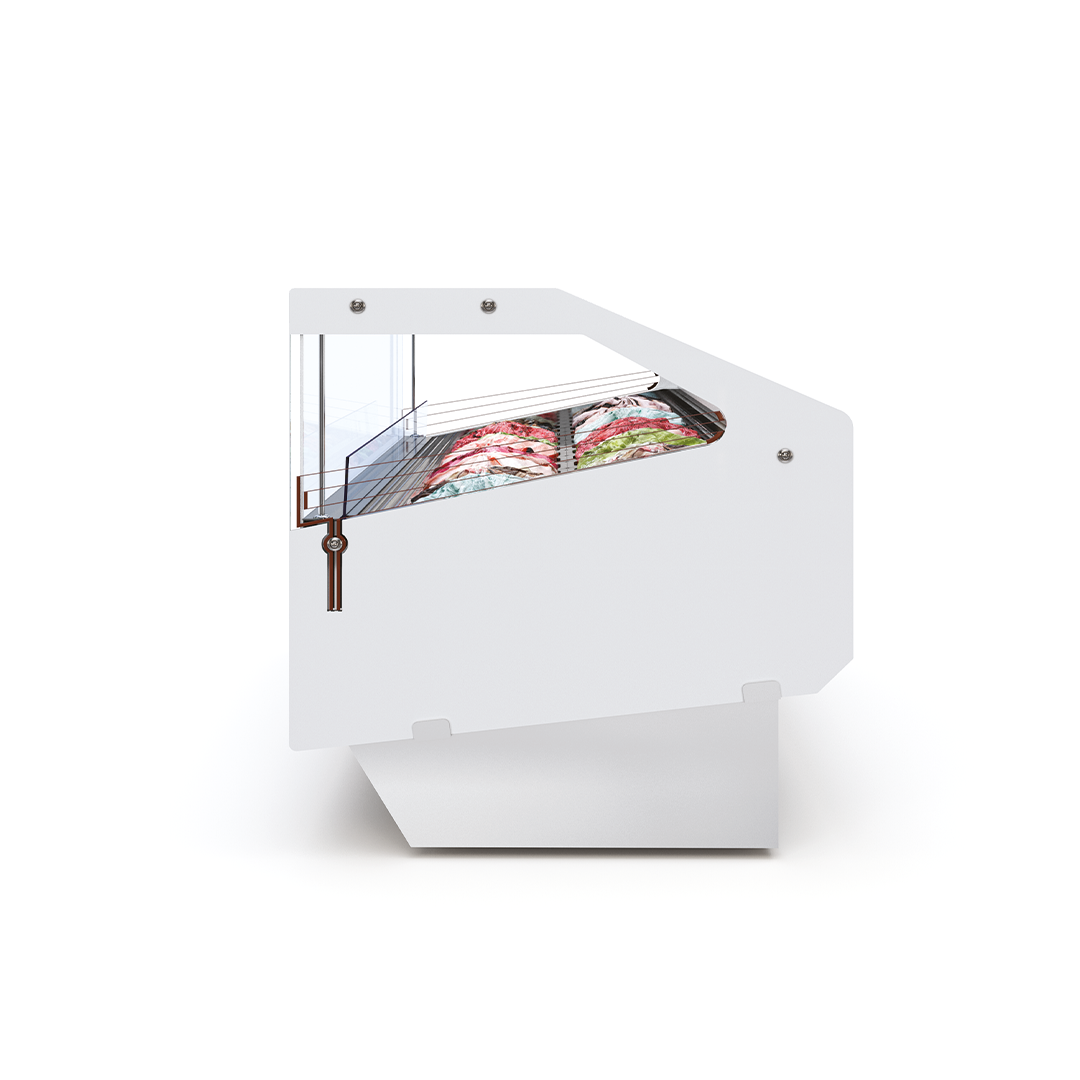

Offers framless minimal design with sharp flat front glass on MX Flat model.
INSULATION
Thanks to its monolithic polyurethane casing and specially produced heated glasses, the ice creams are preserved in Sevel cooling quality.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered front and side windows ensure that the visibility is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1251 (49.25”)
Length and Depth mm – (inches)
U 1230 / 1550 / 1740 / 1950 / 2300 (48.42” / 61.02” / 68.50” / 76.77” / 90.55”)
D 1088 (42.83”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
RAL front panel.
Illuminated or non-illuminated front panel with logo/text application.
Black or White glass screen print color.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Cooling Capacity; Tested under in 60% humidity conditions at +35°C

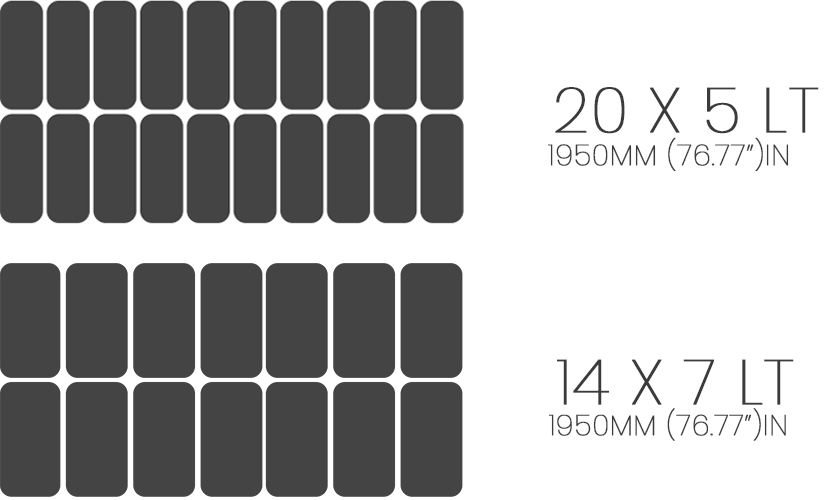

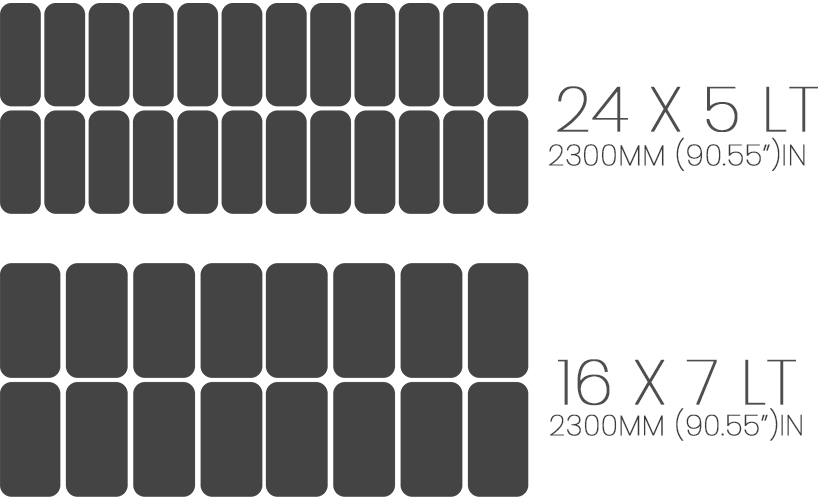

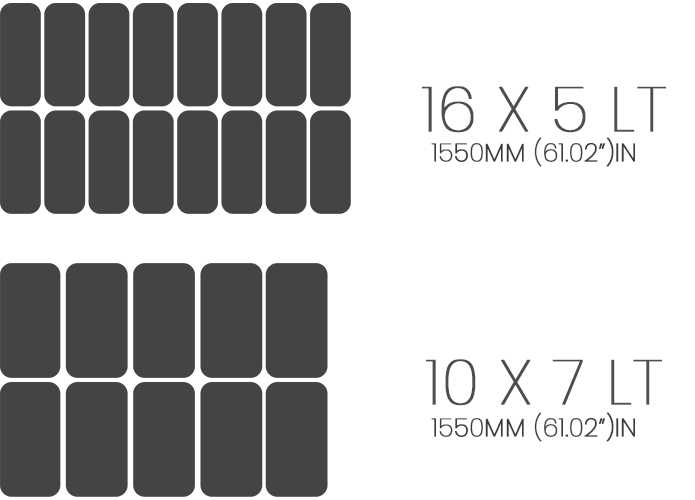

Tub Quantities
Technical specifications

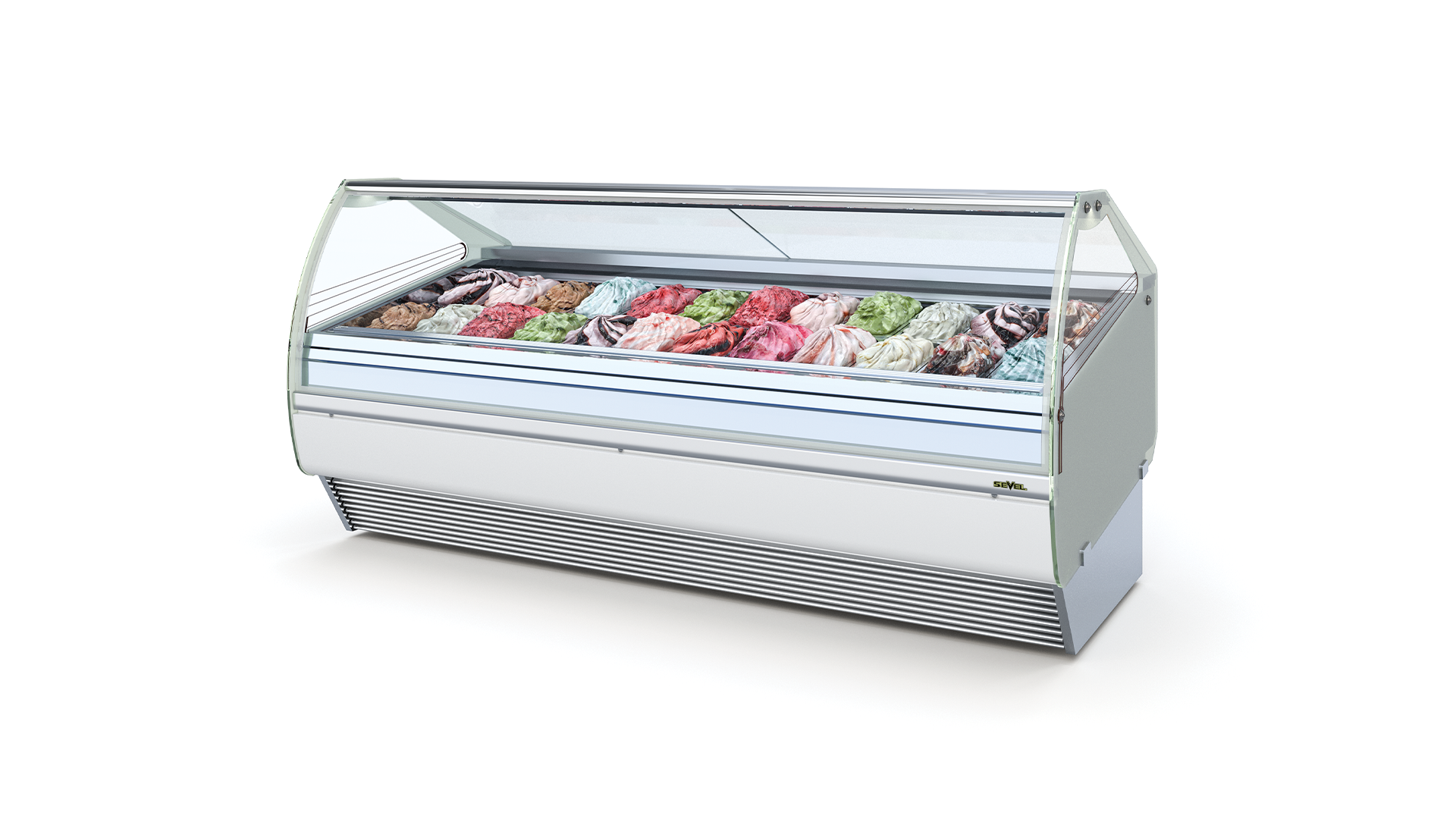

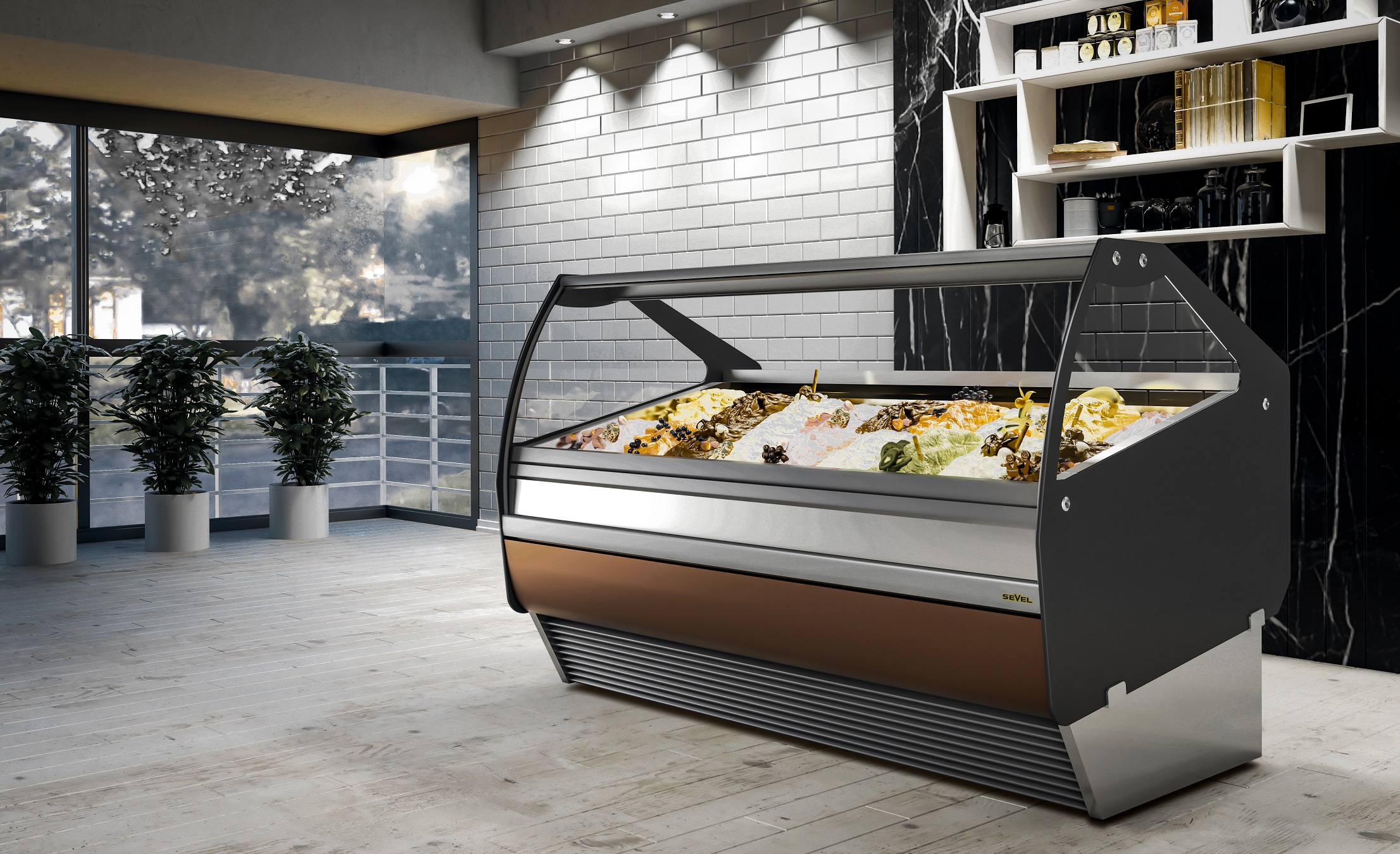

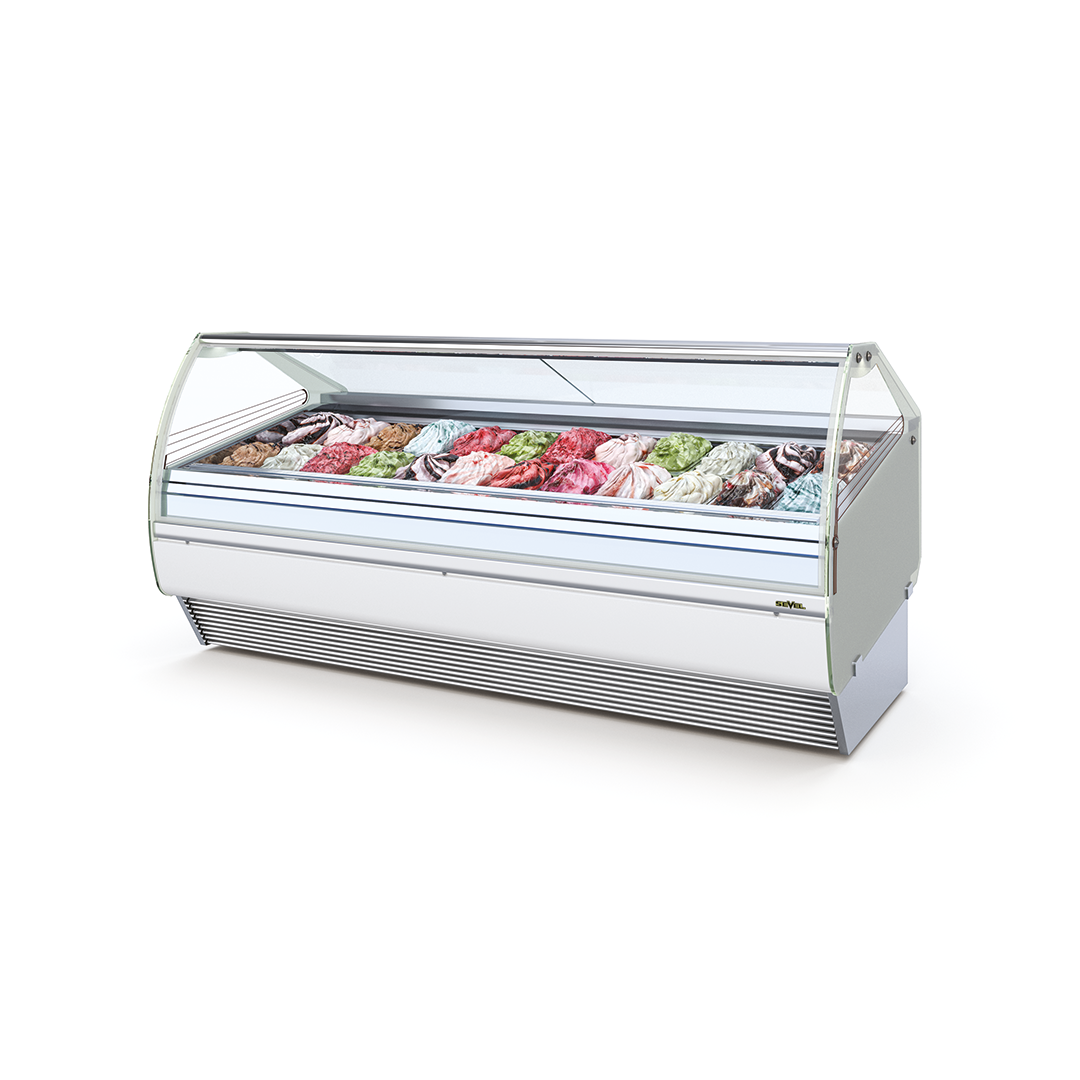

MX
THIN AND MINIMAL DESIGN

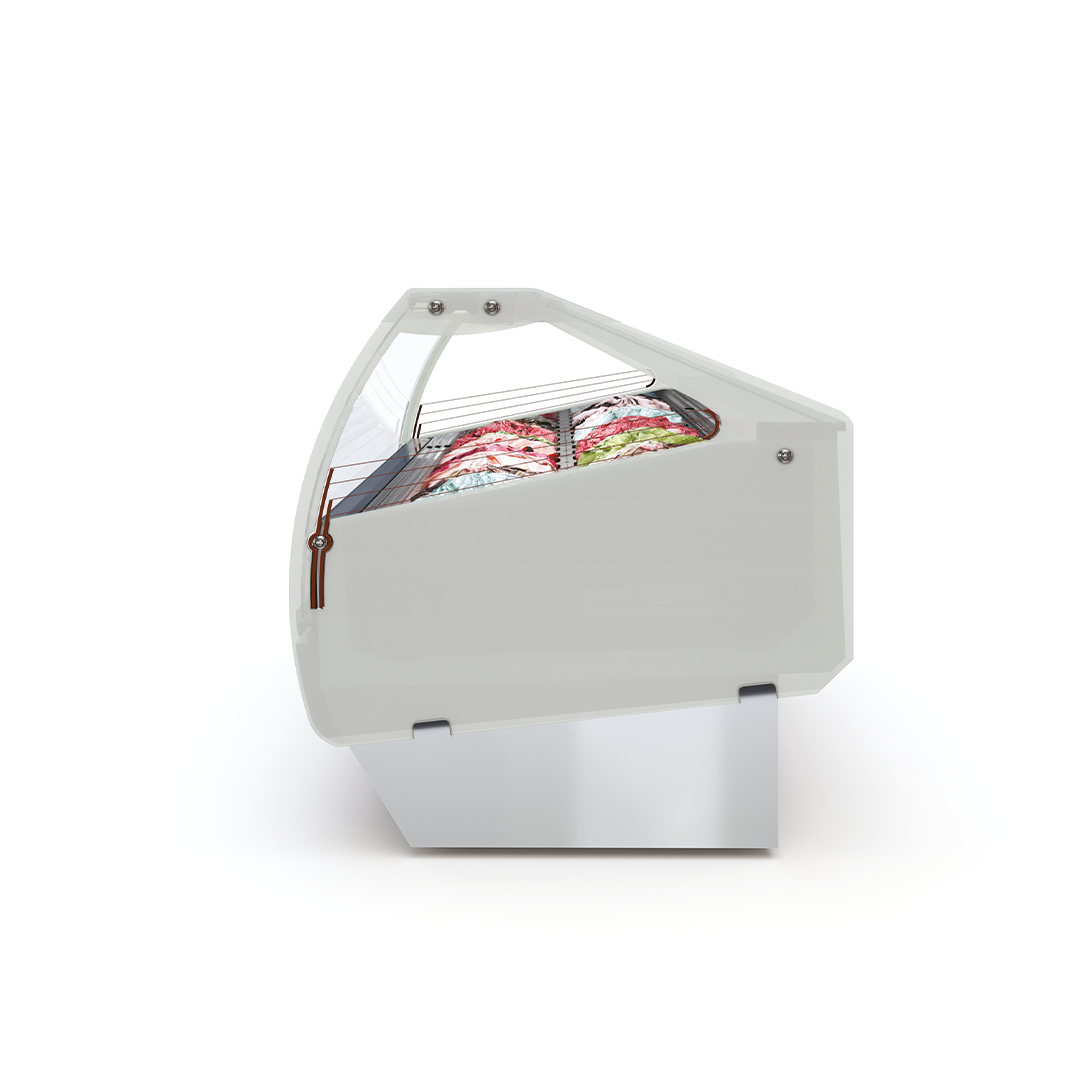

Offers framless minimal design with curved front glass on MX model.
INSULATION
Thanks to its monolithic polyurethane casing and specially produced heated glasses, the ice creams are preserved in Sevel cooling quality.
COOLING
Inside the polyurethane monolithic case there are two compressors(over 16G and S45G models), two seperate cooling systems; in case of failure of one of the compressors, it saves time for the user to save the ice creams.
Heated and tempered front and side windows ensure that the visibility is not adversely affected by changing outside weather conditions.
Height mm – (inches)
1251 (49.25”)
Length and Depth mm – (inches)
U 1230 / 1550 / 1740 / 1950 / 2300 (48.42” / 61.02” / 68.50” / 76.77” / 90.55”)
D 1088 (42.83”)
Cooling Capacity
-18,-22C / 0,-7.6F
Details;
Double hermetic compressors (16 and above models).
Specially developed Dual Time Defrost System. (220V only)
Polyurethane monolithic case.
Heated and tempered double glazing.
Openable front glass.
LED lighting.
RAL front panel.
Illuminated or non-illuminated front panel with logo/text application.
Black or White glass screen print color.
Rear Plexiglass sliding door or wraparound curtain.
Pans are included.
Cooling Capacity; Tested under in 60% humidity conditions at +35°C
Tub Quantities
